YOU PROVIDE THE CREATIVITY.
|

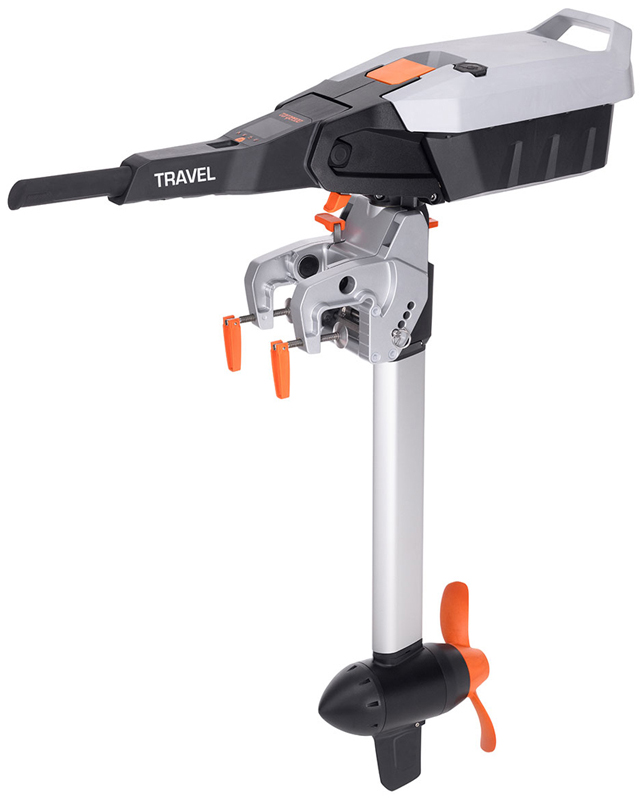

TRAVEL ESSENTIAL PACKAGE (TILLER)
$2998/$3048 LONG/SHORT SHAFT
|
The Torqeedo Travel is a 3 HP equivalent (1100 watt) tiller-steer outboard that works great on our small boats. This little motor has a sleek look, battery that clicks right onto the top of the motor (no separate battery or cables to mount on the boat), and weighs only 44.5 pounds with the battery (25.5 lbs for the motor assembly and 19 lbs for the battery). The long shaft version of this motor is required when mounting on any of our boat kits. Key features and included items are listed below.
WE'LL COVER THE FACTORY FREIGHT IF PICKED UP IN NH OR SHIPPED TO A NH ADDRESS. NOTES:
|
|

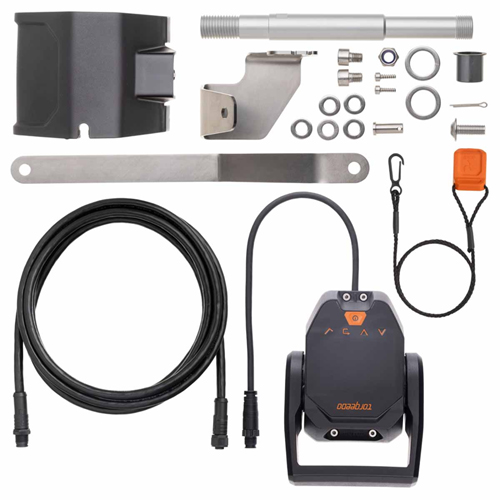

REMOTE CONTROL CONVERSION KIT
$499
|

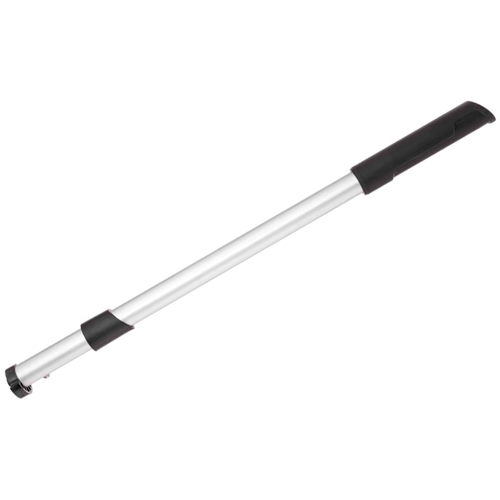

EXTENDED TILLER ARM
$87.00
|

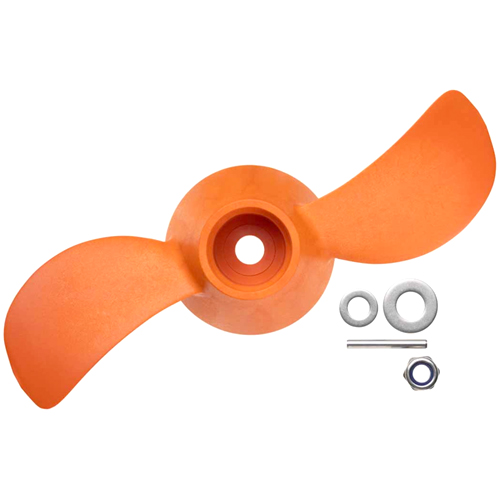

STANDARD PROPELLER
$129.00
|
SOLAR CHARGING CABLE/REGULATOR
$74.99
|
|

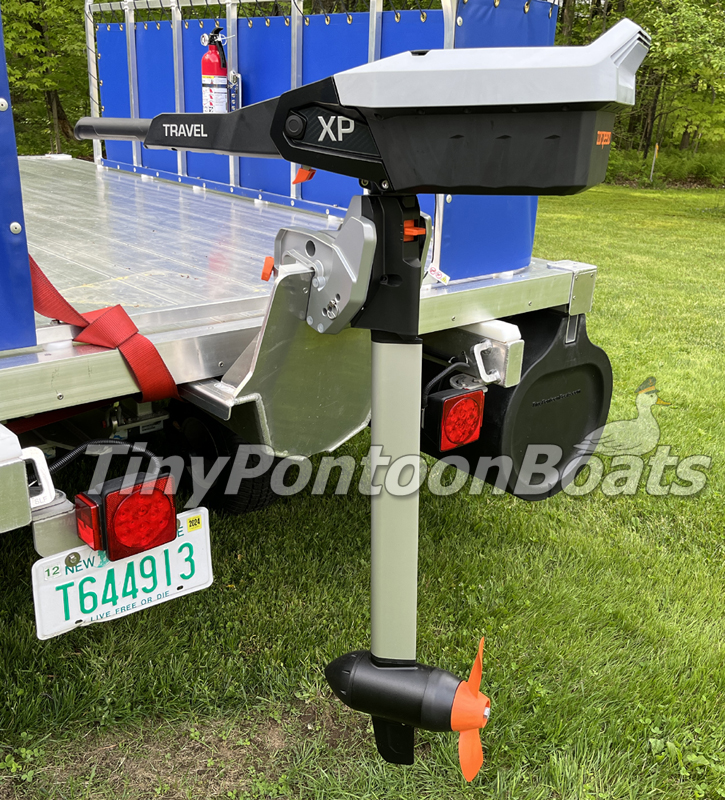

TRAVEL XP POWER PACKAGE (TILLER)
$3998/$4048 LONG/SHORT SHAFT
|
The Torqeedo Travel XP is the 5 HP equivalent (1600 watt) motor that we've been waiting for and is perfect for our 6'x11' mini pontoon boat. This tiller-steer motor is available in short and long shaft configurations (long shaft required for any of our boat kits) and allows for super simple installation as there are no additional batteries or cables required. With this sleek motor, the battery clicks into place on top of the motor and the whole thing weighs only 49 pounds with the battery (27.8 lbs for the motor assembly and 21 lbs for the battery). Key features and included items are listed below.
WE'LL COVER THE FACTORY FREIGHT IF PICKED UP IN NH OR SHIPPED TO A NH ADDRESS.
NOTES:
|
|

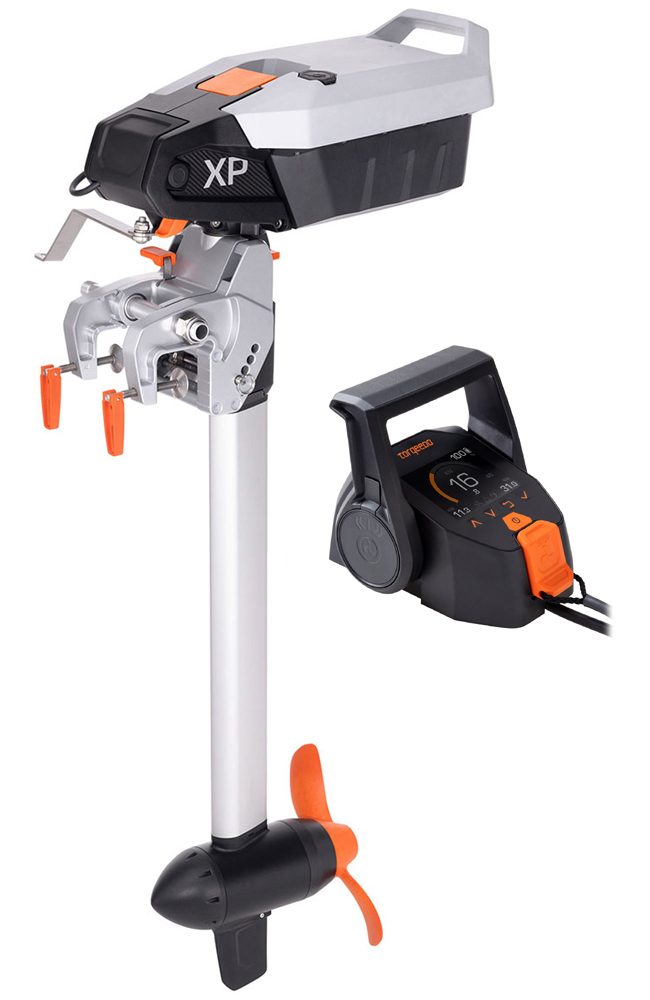

TRAVEL XP POWER & REMOTE PACKAGE
$3998/$4048 LONG/SHORT SHAFT
|
The Torqeedo Travel XP power package PLUS remote throttle is a great set-up for service boats like our 8'x12' mini pontoon boat kit. This kit is the same 5 HP equivalent motor as above, but is made to be used with a steering wheel and the included remote throttle. Pair this kit with one of our mini steering consoles and steering wheel kit and you have a great set-up. This kit is available in long and short shaft configurations. Please contact us for guidance one shaft length when pairing with one of our boat systems. Key features and included items are listed below.
WE'LL COVER THE FACTORY FREIGHT IF PICKED UP IN NH OR SHIPPED TO A NH ADDRESS. NOTES:
|
|
REMOTE CONTROL CONVERSION KIT
$499
|
EXTENDED TILLER ARM
$87.00
|
STANDARD PROPELLER
$129.00
|
SOLAR CHARGING CABLE/REGULATOR
$74.99
|
|

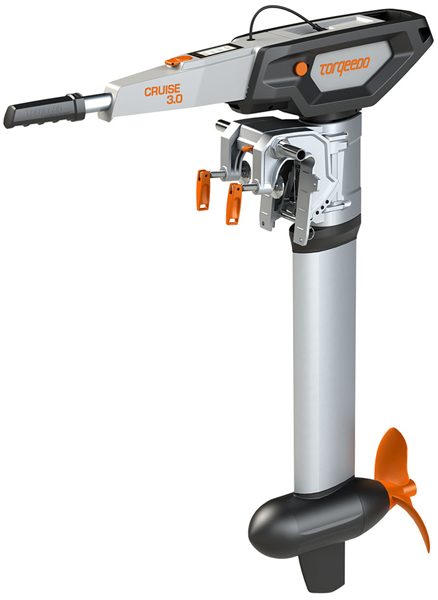

CRUISE 3.0 TILLER
$4298
|
The Torqeedo Cruise 3.0T is a 6 HP equivalent (3000 watt) tiller-steer outboard that's perfect for our smaller boat when you need more range and a little more power than the Travel XP motor offers. This robust motor is available in a long and short shaft configuration (all of our boat systems will require the long shaft length) and requires a separate boat-mounted battery (not included in this package). These motors have an integrated on-board computer with a GPS-based range calculator and can be used with either Torqeedo or aftermarket batteries.
WE'LL COVER THE FACTORY FREIGHT IF PICKED UP IN NH OR SHIPPED TO A NH ADDRESS. NOTES:
|
|

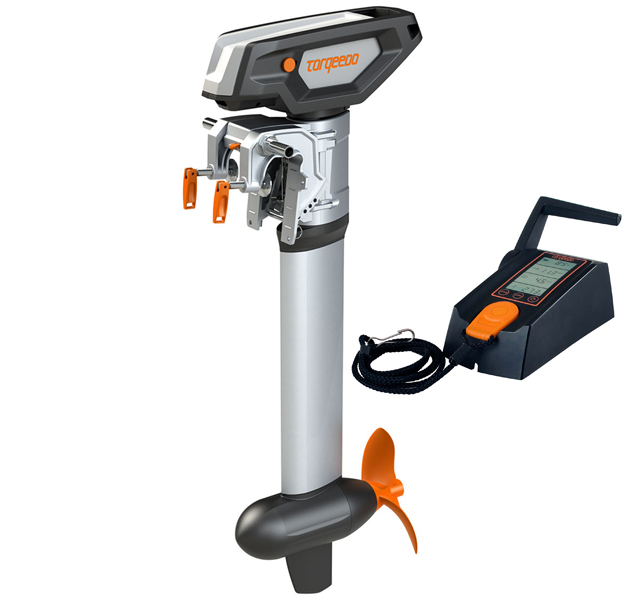

CRUISE 3.0 REMOTE PACKAGE
$4598
|
The Torqeedo Cruise 3.0R is a great set-up for service boats like our 8'x12' mini pontoon boat kit. This kit is the same 6 HP equivalent motor as above, but made for use with a steering wheel and the included remote throttle. Pair this kit with one of our mini steering consoles and steering wheel kit (from another supplier) and you have a great set-up. This kit is available in long and short shaft configurations. Please contact us for guidance on shaft length when pairing with one of our boat kits. This motor can be used with a Torqeedo or aftermarket battery. A BATTERY IS NOT INCLUDED WITH THIS KIT. Key features and included items are listed below.
WE'LL COVER THE FACTORY FREIGHT IF PICKED UP IN NH OR SHIPPED TO A NH ADDRESS. NOTES:
|
|

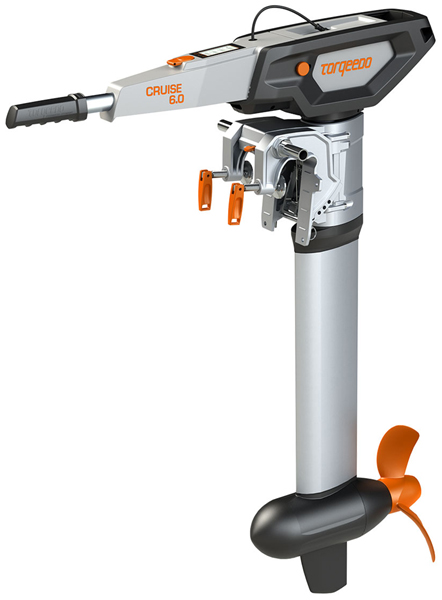

CRUISE 6.0 TILLER
FOR AFTERMARKET BATTERIES $4997
|
The Torqeedo Cruise 6.0T is a 9.9 HP equivalent (6000 watt) tiller-steer outboard that's a great for option when you need a solid amount of power on a small to medium size boat. This 48 volt motor is a popular option for those who use our 8'x12' mini pontoon boats as work platforms. This robust electric outboard has an integrated onboard computer with a GPS-based range calculator, and includes a 3rd party battery cable set (also includes Torqeedo battery specific cable set). This motor does require a separate boat-mounted battery, and you can use either a Torqeedo brand battery or an aftermarket battery (battery is not included). This motor is availabe in a long or short shaft configuration. Please contact us for guidance one shaft length when pairing with one of our boat systems. Key features and included items are listed below.
WE'LL COVER THE FACTORY FREIGHT IF PICKED UP IN NH OR SHIPPED TO A NH ADDRESS. NOTES:
|
|

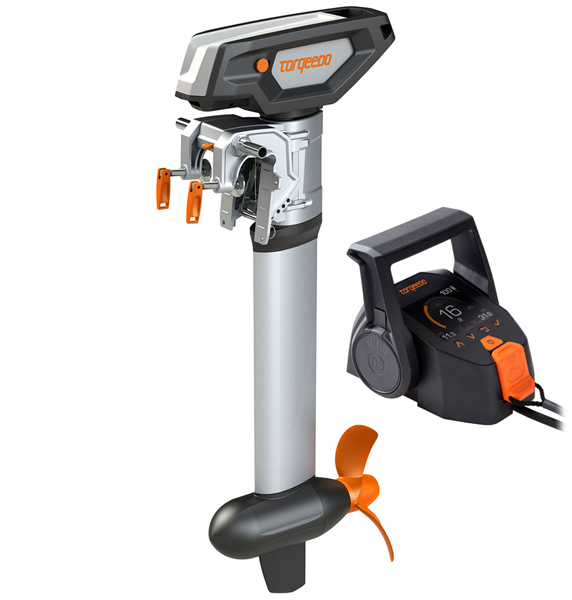

CRUISE 6.0 RL PACKAGE
FOR AFTERMARKET BATTERIES $5376
|
The Torqeedo Cruise 6.0R is a great option for our 8'x12' or 8'x15' when used as a service boat or a cruising boat. This kit is the same 9.9 HP equivalent motor as above, but made for use with a steering wheel and the included remote throttle. Pair this kit with one of our mini steering consoles and steering wheel kit (from another supplier) and you have a great set-up. This 48 volt motor does require a separate boat-mounted battery, and you can use either a Torqeedo brand battery or an aftermarket battery (battery is not included). This motor is availabe in a long or short shaft configuration. Please contact us for guidance one shaft length when pairing with one of our boat systems. Key features and included items are listed below.
WE'LL COVER THE FACTORY FREIGHT IF PICKED UP IN NH OR SHIPPED TO A NH ADDRESS. NOTES:
|
|

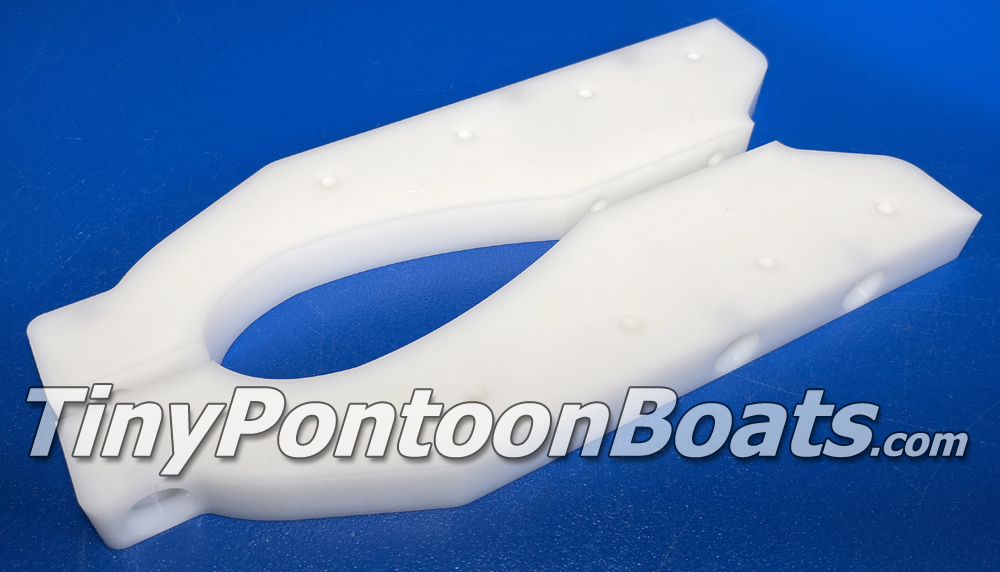

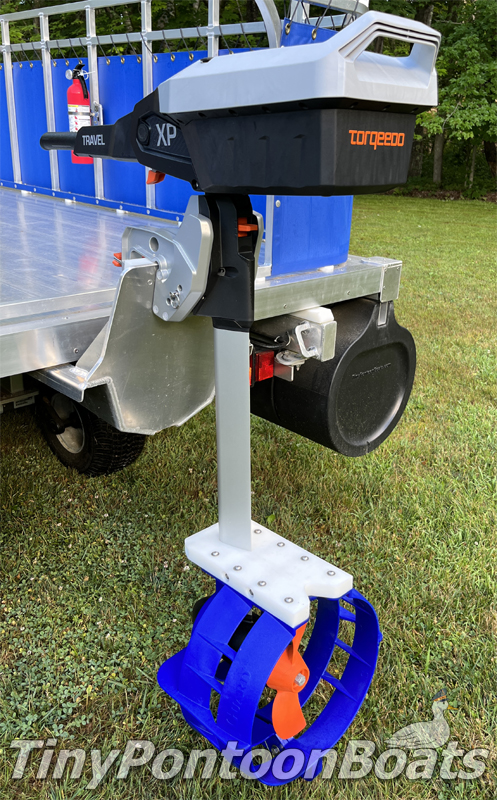

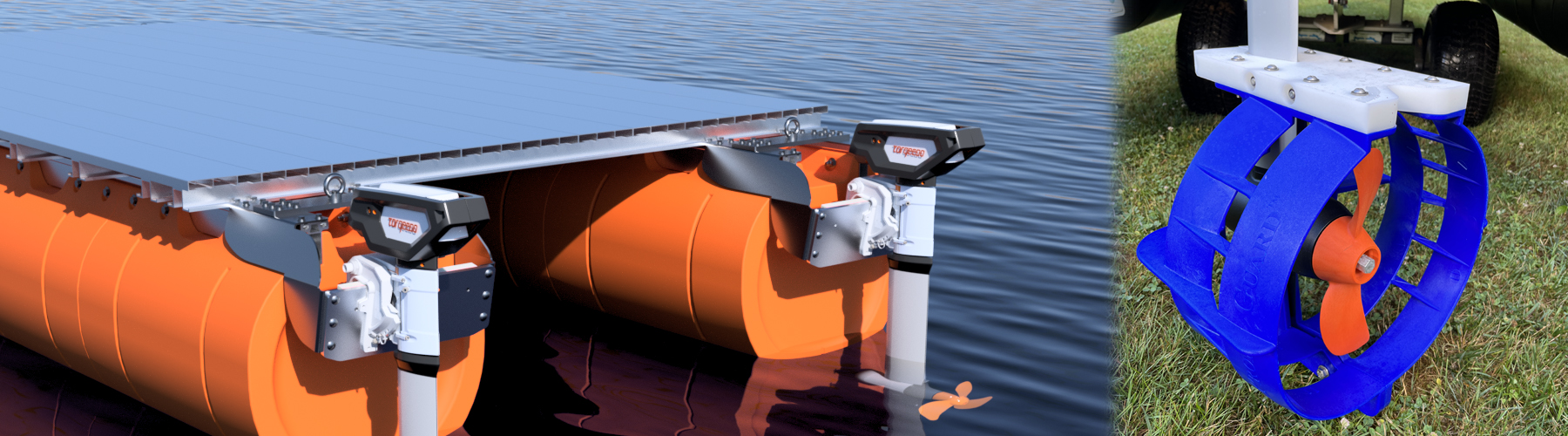

PROPELLER GUARDS & ADAPTER KITS
FOR TORQEEDO CRUISE 3.0/6.0 & TRAVEL/TRAVEL XP MOTORS $775 We offer propeller guard kits for the Torqeedo Travel XP, Standard Travel (3 HP models), Cruise 3.0, and Cruise 6.0 electric outboard motors. This kit comes with a genuine Prop Guard Marine brand (USA made & patented) propeller guard and our in-house machined HDPE plastic adapter bracket. All the required stainless hardware is included and the kit is for all OEM propellers available for these two motors (all OEM props are less than 13" diameter). Please be aware that you do have to drill a hole in the bottom fin of your motor for proper installation. This may void the factory warranty on your Torqeedo outboard.
These kits typically ship 1-2 weeks after purchase and we will need to know which model motor you have when placing your order.
|
|
|

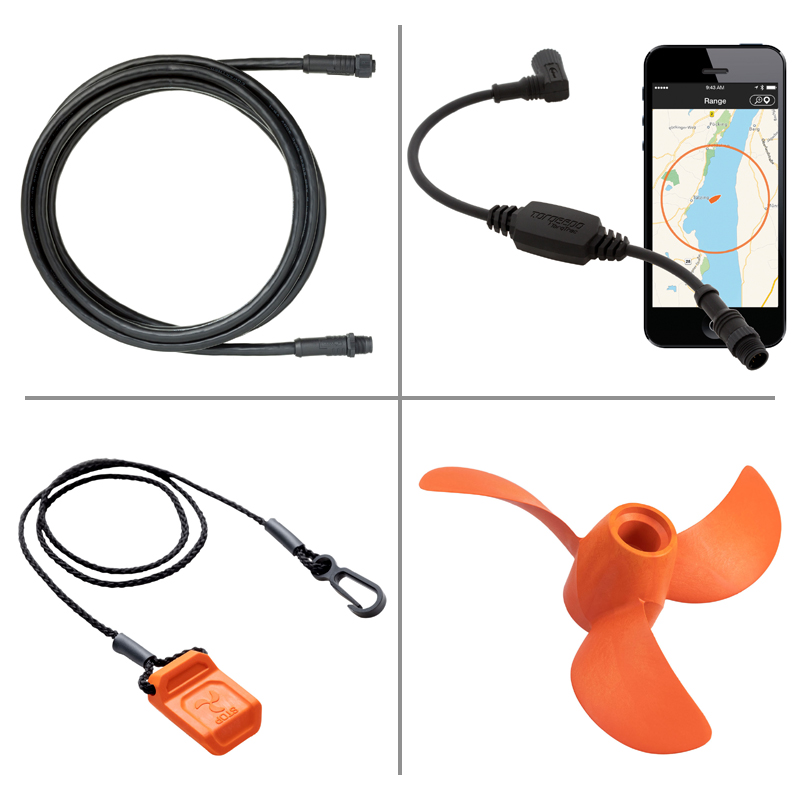

TORQEEDO PARTS & ACCESSORIES
|
We have access to the full line of Torqeedo boat motors, parts, and accessories. There's simply too much to list on this page, so if you need anything else from or for your Torqeedo, please contact us. As with all Torqeedo gear, you can also avoid a shipping fee if you pick up at our shop in NH.
|
|

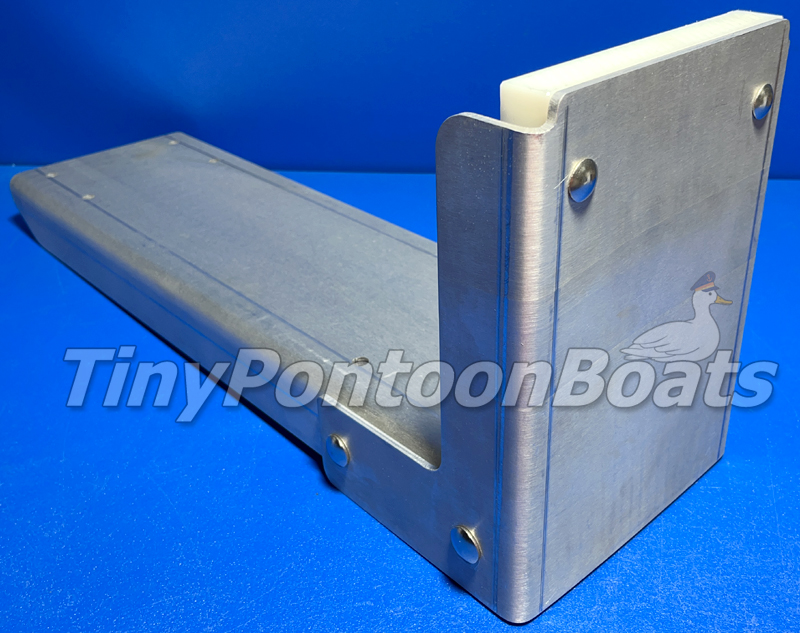

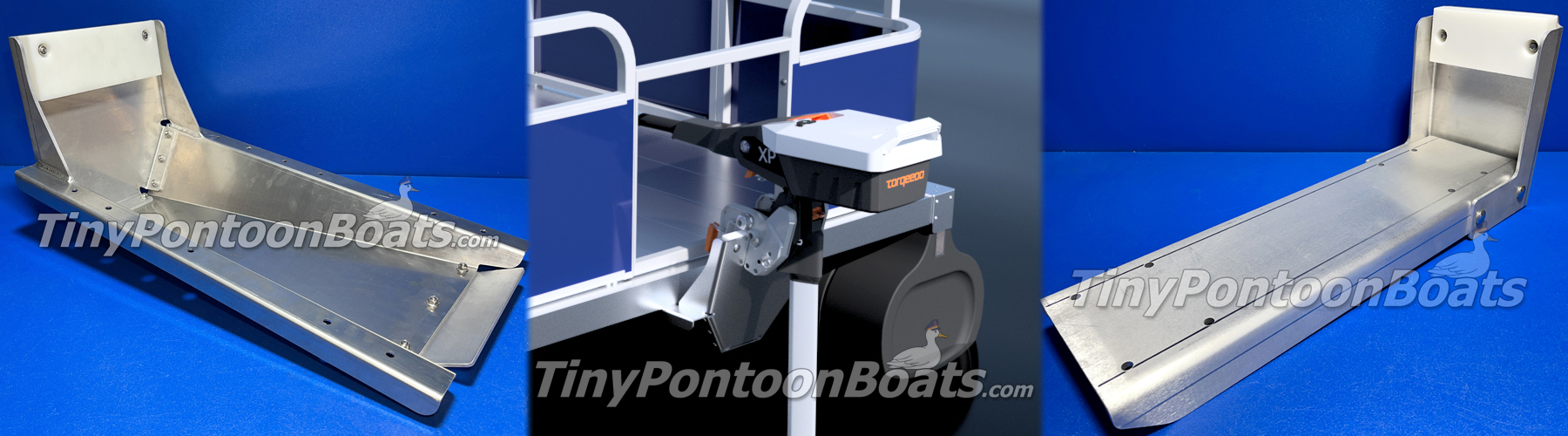

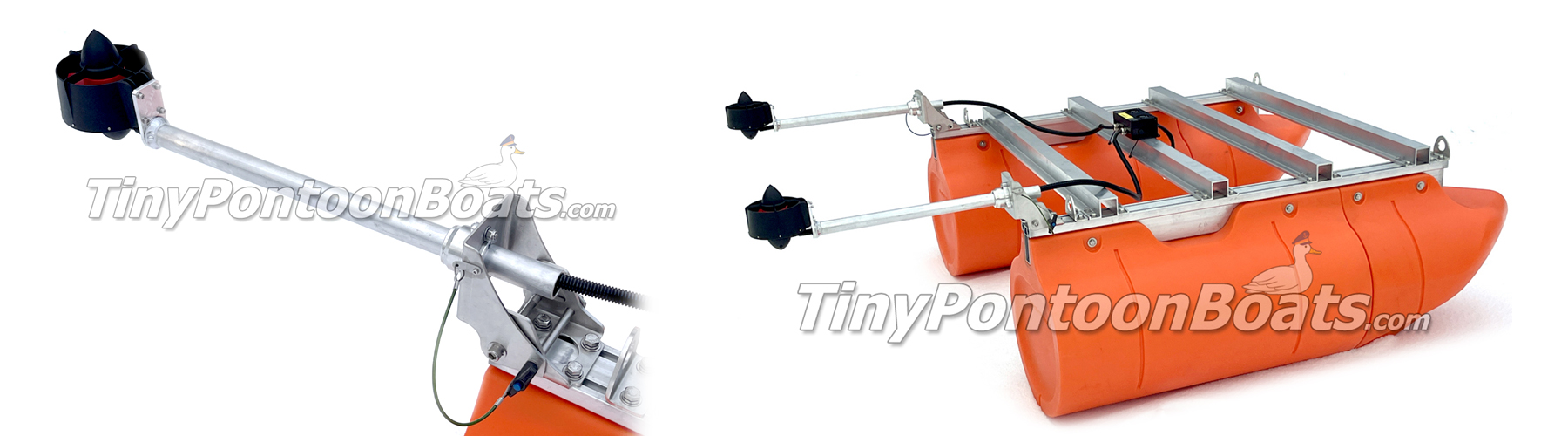

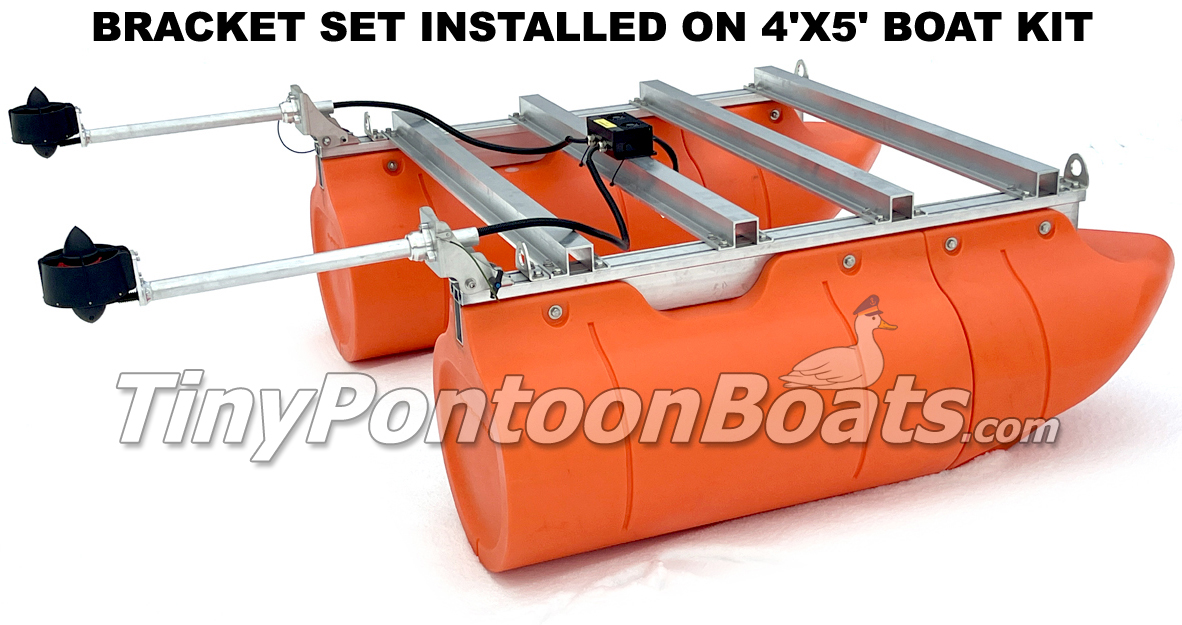

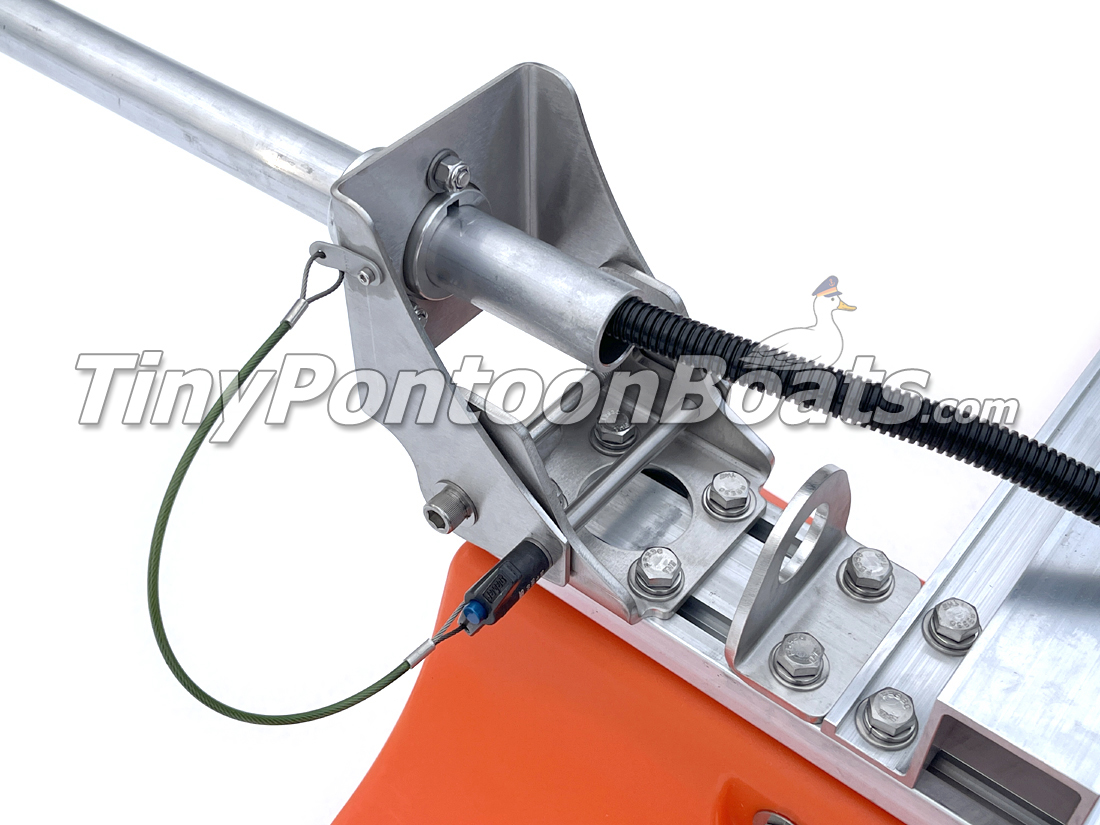

TROLLING MOTOR MOUNTS (CROSSMEMBER MOUNT)
$395 Our pontoon boat trolling motor mounting brackets are designed to work with clamp-on trolling motors that produce up to 80 pounds of thrust. These motors are referred to as "transom-mount" motors and come equipped with a bracket with screw clamps. This bracket design is made to bolt to your frame's crossmembers and is used with both passenger and robotics boat applications. If you're looking to mount motors on a robotics platform with only two nose cones, and you are using differential steering (dual motors), you'll want to check out our "in-line" motor mounts in the section below.
Our trolling motor mounts are made from 5052 aluminum with a HDPE plastic spacer block, which provides a 1 3/16" thick mounting surface. When selecting a trolling motor for use with these brackets, 36" and 42" shaft lengths work well with our boat kits with 18" wide floats, and 52" long shaft motors are preferable for our boats with 27" wide floats. If you have a bass boat style bow-mount trolling motor (typically 100 pound thrust and larger), this bracket is not required. This kit includes stainless mounting hardware and mounting holes come machined in your crossmembers when purchased with a boat kit.
|
|
|

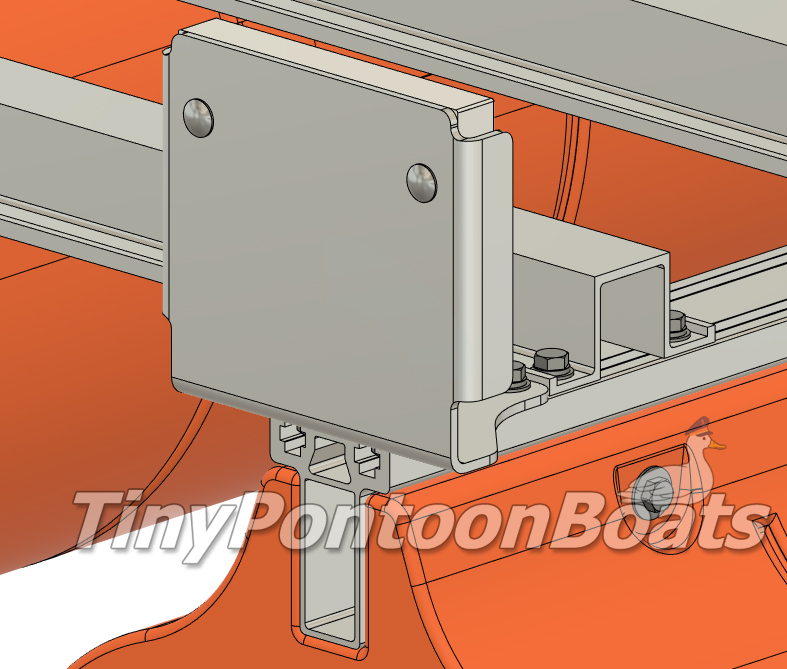

IN-LINE TROLLING MOTOR MOUNTS
$329 Our in-line trolling motor mounting brackets (transoms) are designed for small trolling motors that produce up to 50 pounds of thrust. These are typically used when building robotic boats. Most applications will require two brackets, especially when working with differential steering (dual-motors / skid steer type steering). Our brackets are designed to be light-weight (only 2.2 pounds with hardware) and tough, and are made from 3/16" thick 5052 aluminum with a 1/4" thick gusset. The 1" thick HDPE plastic block makes the clamping surface 1 3/16" thick so your stock trolling motor can clamp to it easily. This kit includes the required stainless mounting hardware.
These brackets can be made from 304 stainless steel for $90 more per kit.
|
|
|

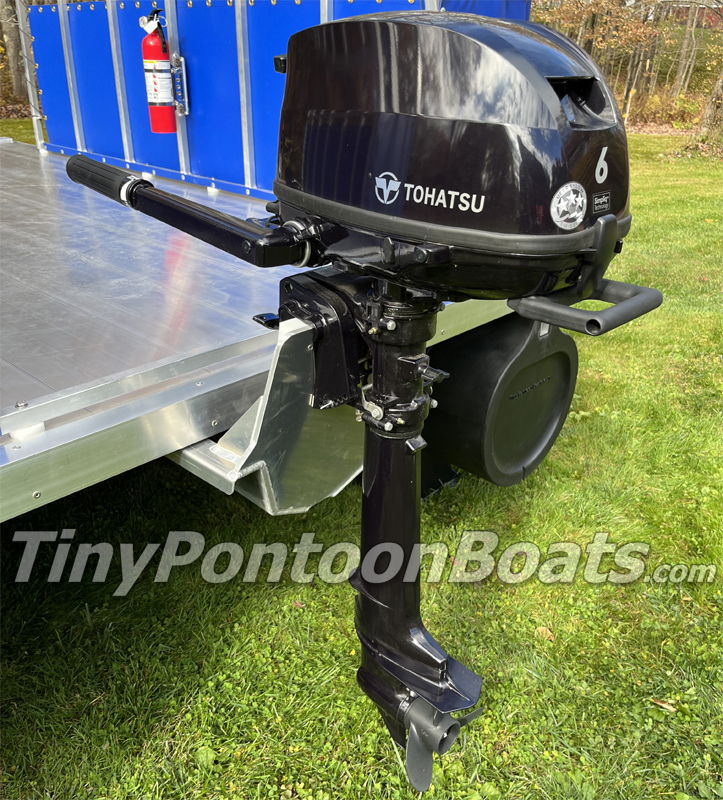

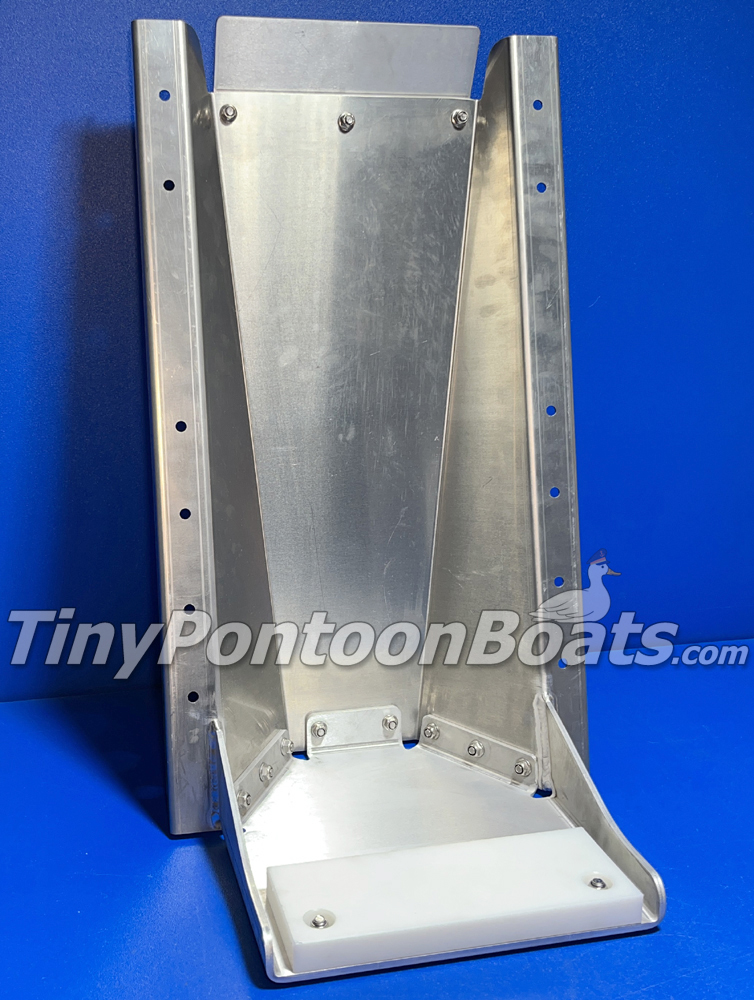

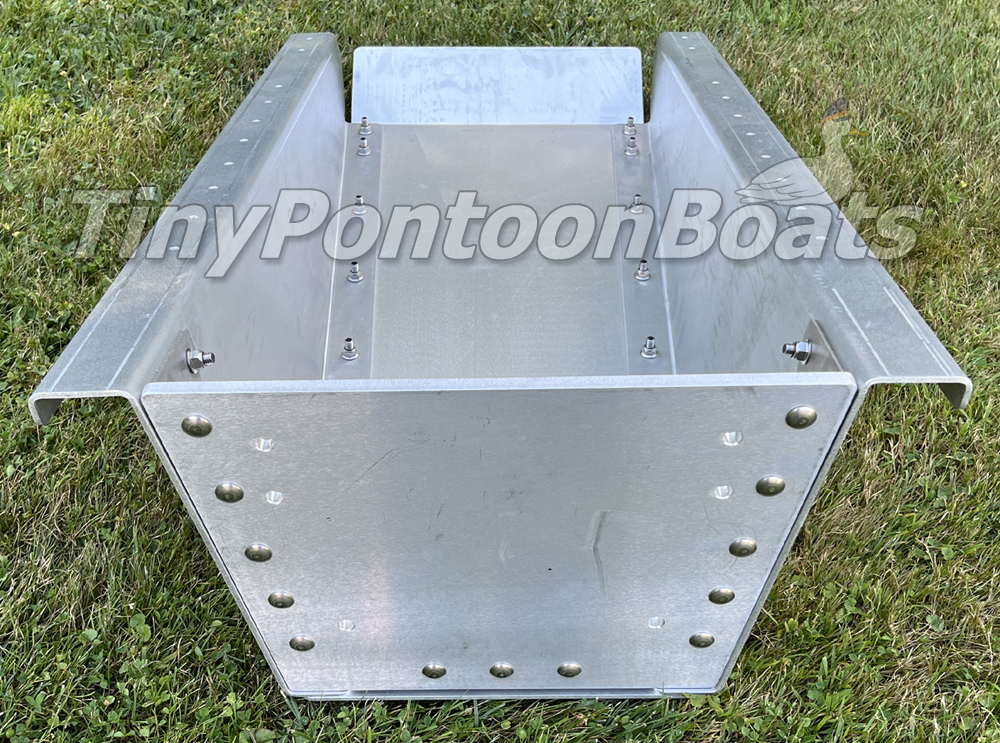

6 HP TRANSOMS FOR BOATS WITH 18" WIDE FLOATS
$750 These 6 HP capacity transoms are made for our 6'x11' and 6'x14' single-nose boats with 18" wide floats and are designed for long-shaft outboard motors (gas or electric). The motor mounting plate has a 14° tilt angle and the assembly provides additional lift when your boat has a full load. The raised mount design allows tiller steer motors to be comfortable to operate and keeps the motor as close to the boat as possible. The motor bracket is made from 5052 aluminum and comes with a HDPE plastic spacer block and stainless steel installation hardware. When purchased with a boat kit, your boat's frame will come with the mounting holes machined to make installation simple.
|
|
|

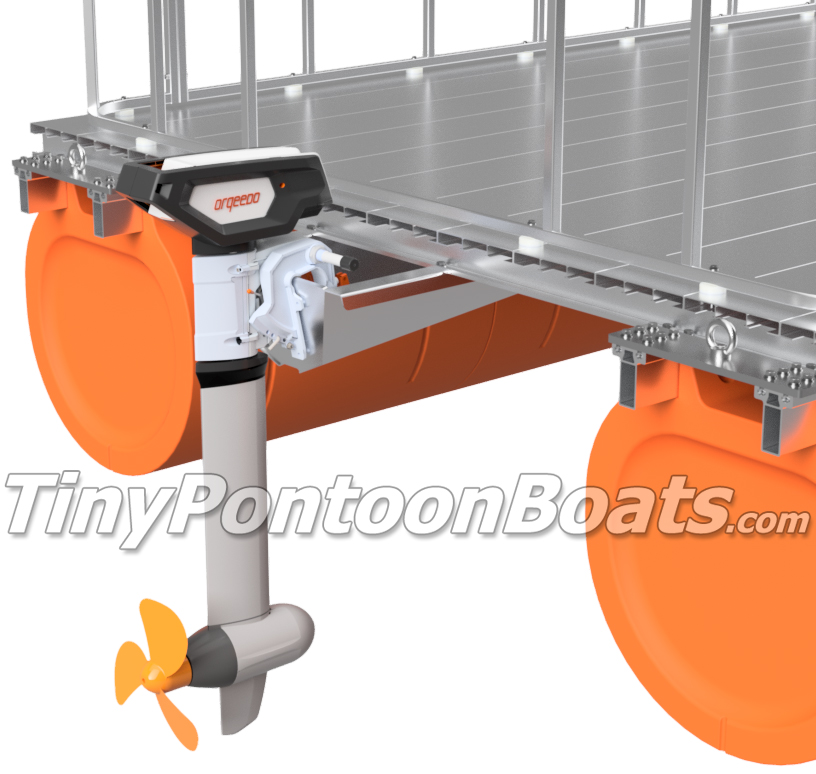

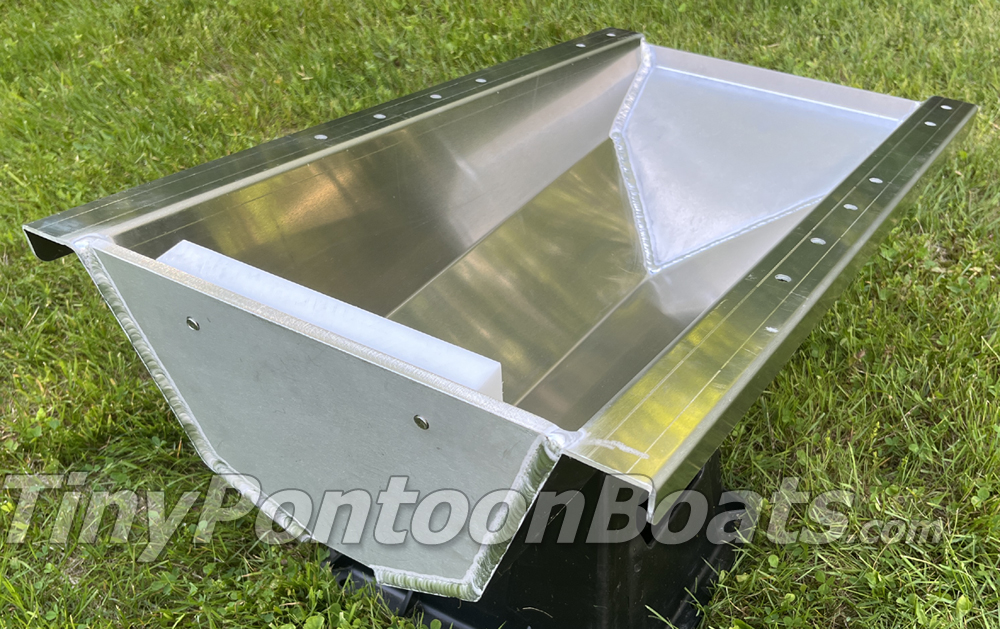

6 HP TRANSOMS FOR BOATS WITH 27" WIDE FLOATS
$850 Made for our shorter single-nose boat kits with 27" wide floats (7'x9', 8'x9', 7'x12', and 8'x12' models), this transom is made for long shaft motors and puts the engine clamping plate even with the bottom of the boat's frame. As the center line of the propeller shaft should align with the bottom of the floats on these models, this transom does NOT use a lifted design. This means that if you are using a tiller steer motor (no steering wheel), you will require a tiller steer handle extension to operate your motor. The motor mounting plate has a 14° tilt angle and a HDPE plastic spacer block for clamp-on motors. The motor bracket is made from 5052 and stainless steel installation hardware is included. When purchased with a boat kit, your boat's frame will come with the mounting holes machined to make installation simple.
|
|
|

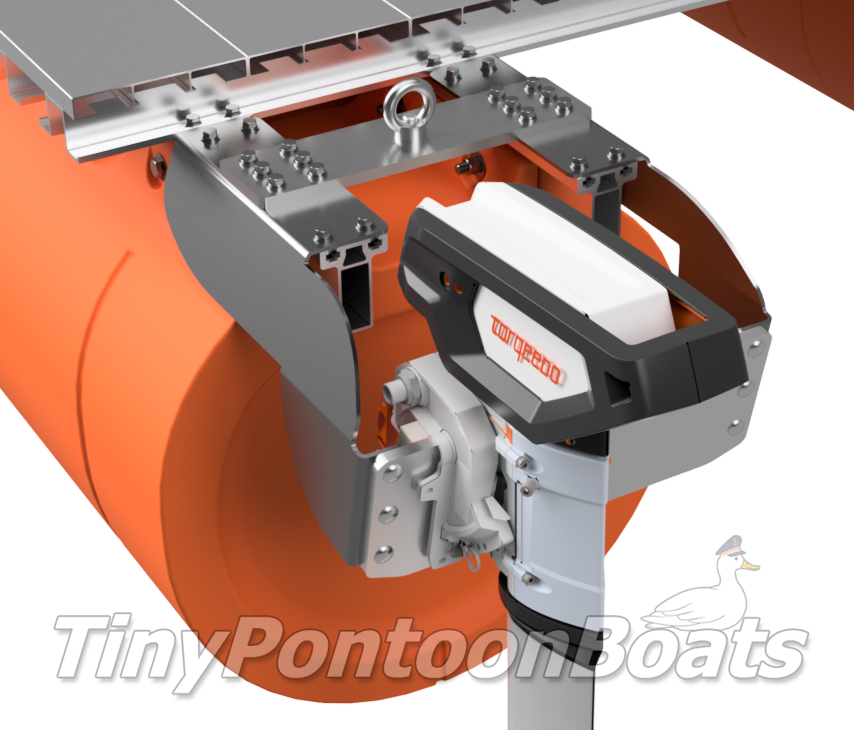

IN-LINE 10 HP TRANSOM SET
$2385/PAIR Our in-line 10 HP transom set is designed for 10 HP (6 KW) electric motors for those who need differential steering (dual-motors / skid steer type steering) when working with our single-nose pontoon boats with 27" wide floats. These motor mounting brackets are typically used by robotics customers and require specific modifications to the frame layout when used on our 9', 12', and 15' long single-nose pontoon boats with 27" wide floats. This transom set uses 3/16" thick, 304 stainless steel side brackets and a 1/2" thick 5052 aluminum motor clamping plate. Our 10 HP in-line transom set can be used with or without our lifting bracket set and is paired well with Torqeedo Cruise 6.0 motors.
This bracket set is NOT designed to allow for conventional marine cable steering and most motors will require a simple strut to keep the motors pointed straight. Please contact us for details.
|
|
|

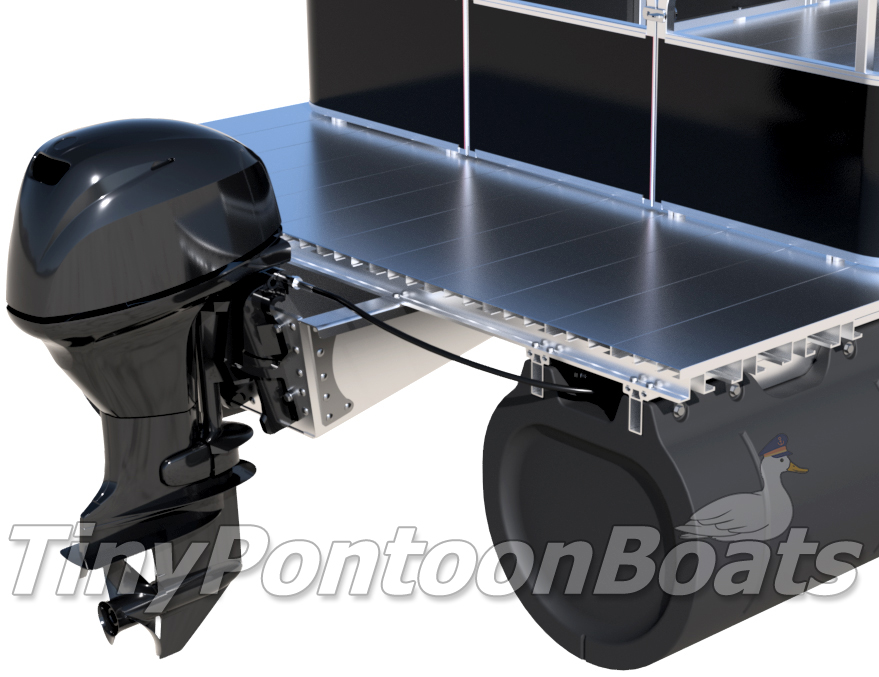

20/30/60 HP TRANSOMS
$1800/$1850/$2640 Our 20, 30, and 60 HP capacity bolt-together transoms are industrial quality systems that are made for our boat and barge systems with 27" and 36" wide floats. When mounting on our large barge systems with 36" wide floats, drop-brackets are required. Our modular motor mounting brackets use 3/16" thick 5052 aluminum hanger plates and belly pan, 1/2" thick 5052 aluminum engine mounting plates, 1/8" or 3/16" thick 316 stainless assembly and reinforcement brackets, and use 3/8" stainless assembly hardware.
Please be aware that modern 7.5-20 HP motors with electric tilt or trim will NOT fit onto our 30 and 60 HP transoms (mounting brackets are taller than with larger "OMC" standard bolt pattern motors). Please contact us for guidance on which transom to select before placing your order.
|
|
|

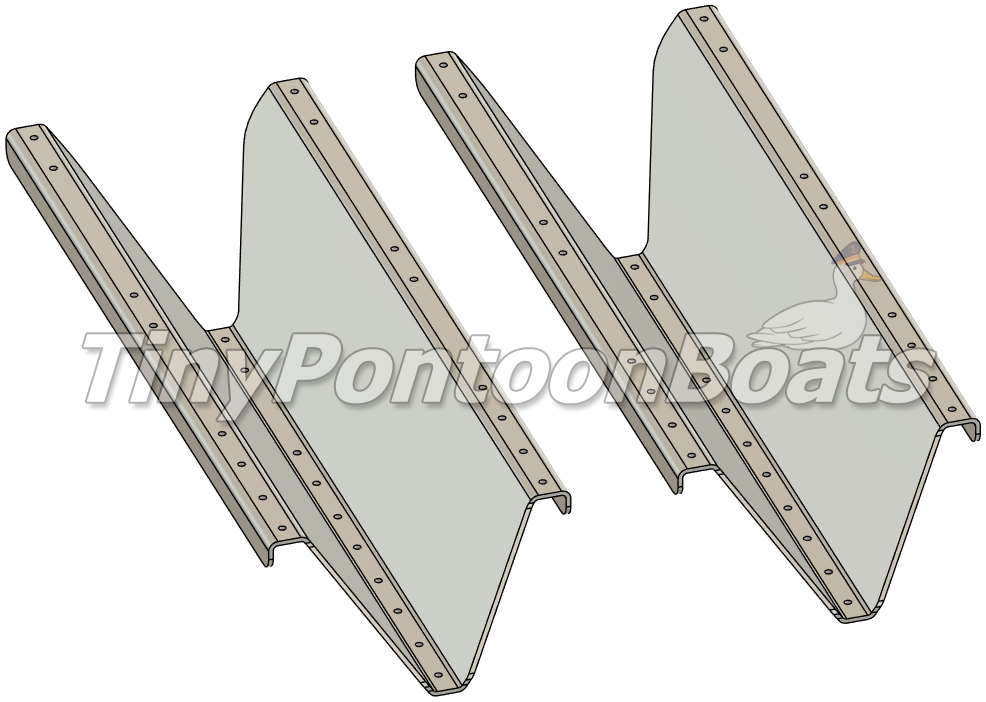

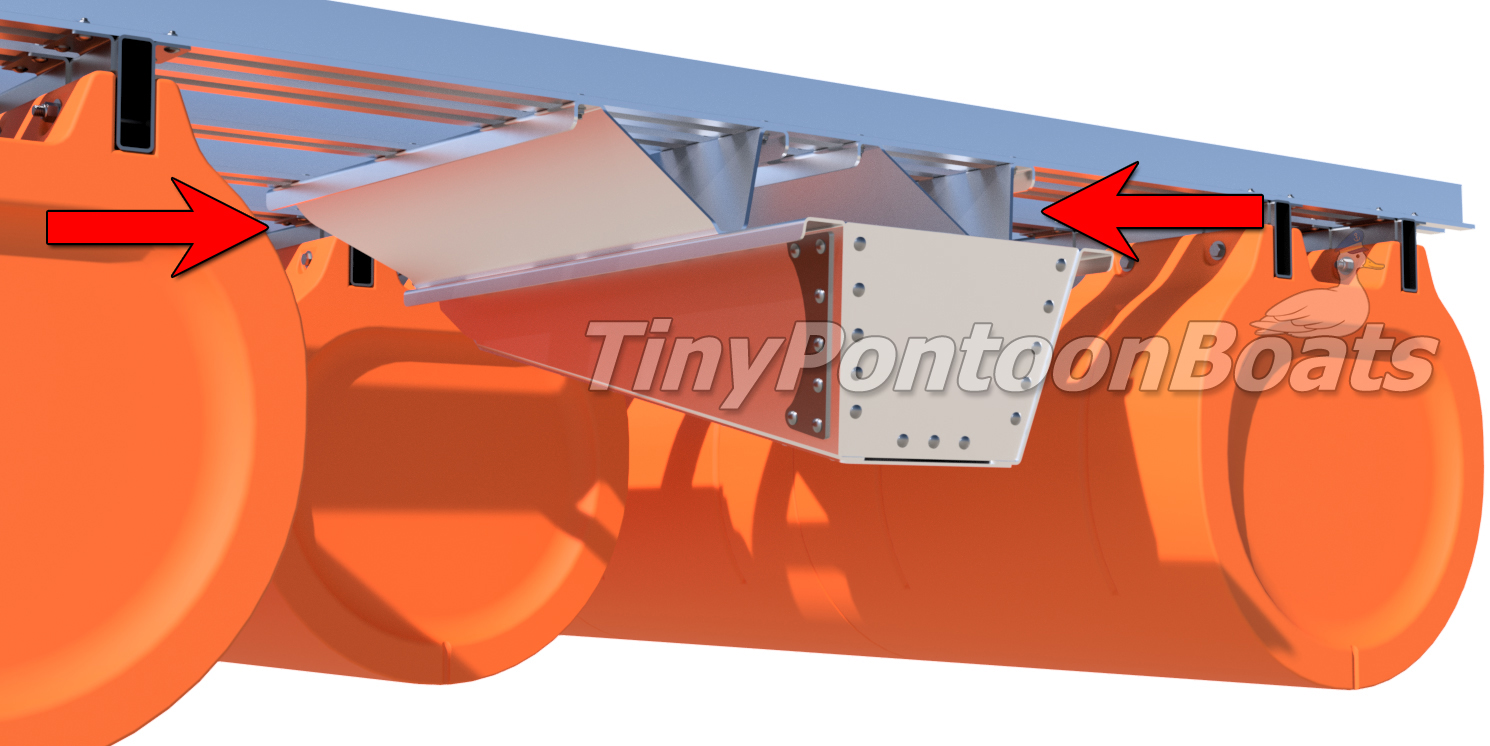

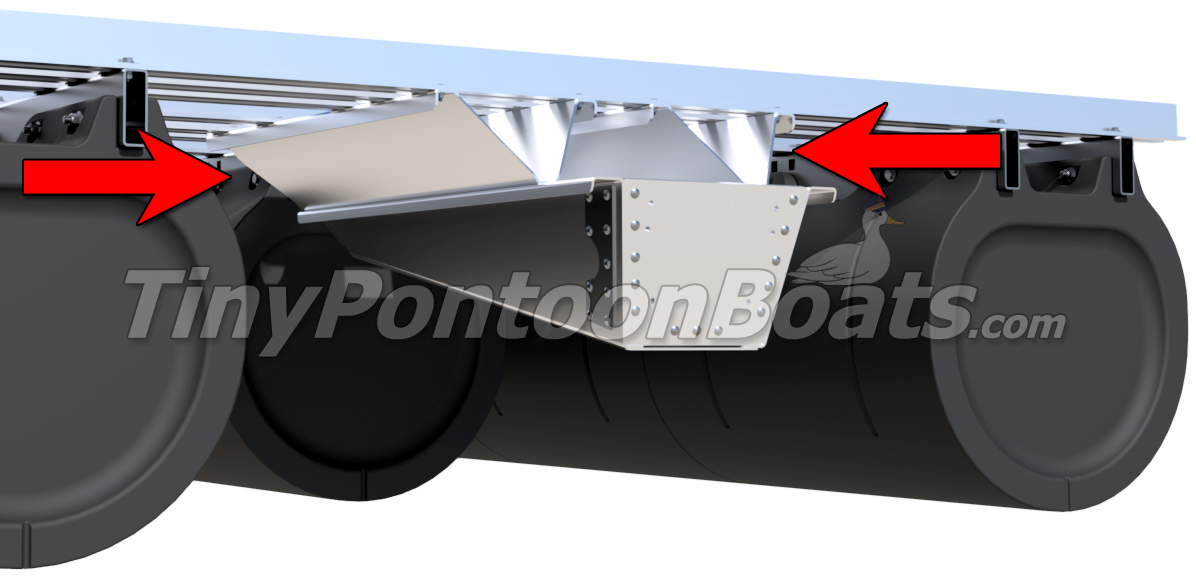

20/30/60 HP TRANSOM DROP-BRACKET SET FOR BARGES WITH 36" WIDE FLOATS
$1498 When mounting our 20, 30, or 60 HP transoms under our large barge systems with 36" wide floats, these brackets are required. These brackets are made from 1/4" thick 5052 aluminum and mount transoms down 8" from the frame's crossmembers and allow a standard long-shaft motor to be used. Our lowering brackets include the required mounting hardware for our large barge systems and may require additional lowering spacers or a jack plate dependant on how loaded your boat is/will be.
|
|
|

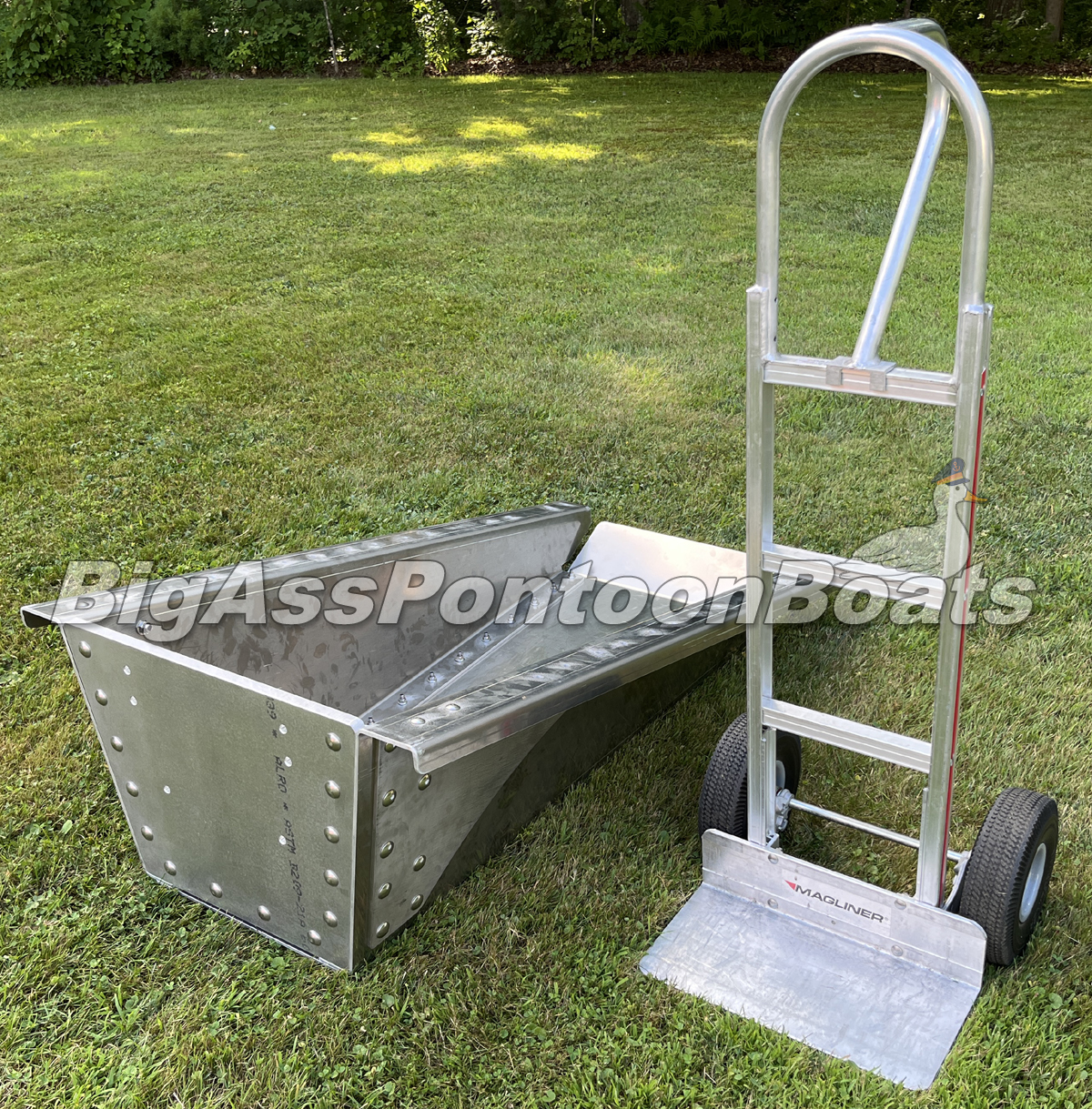

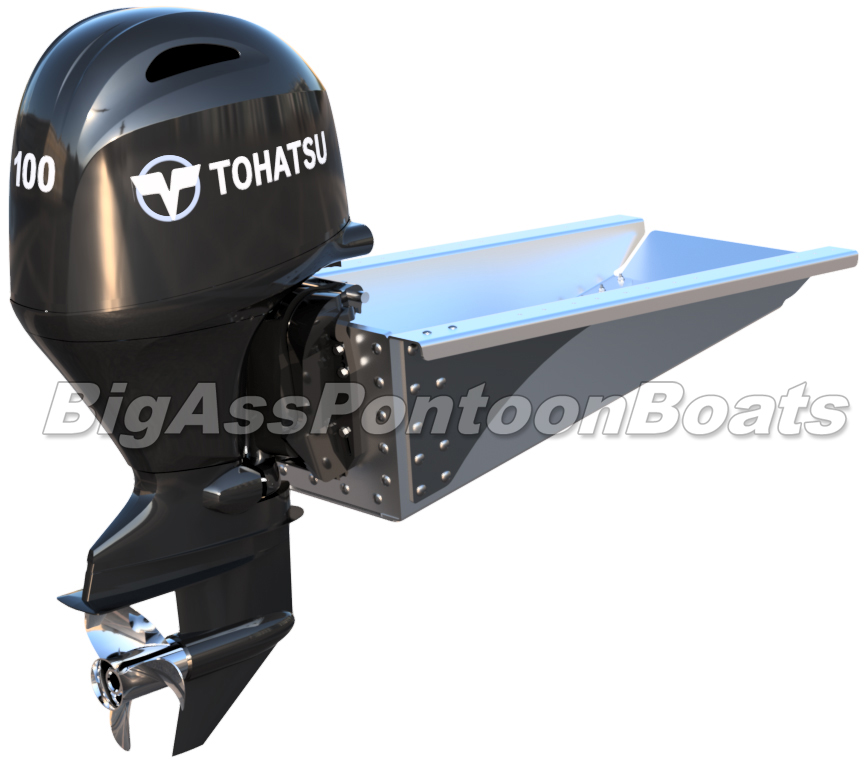

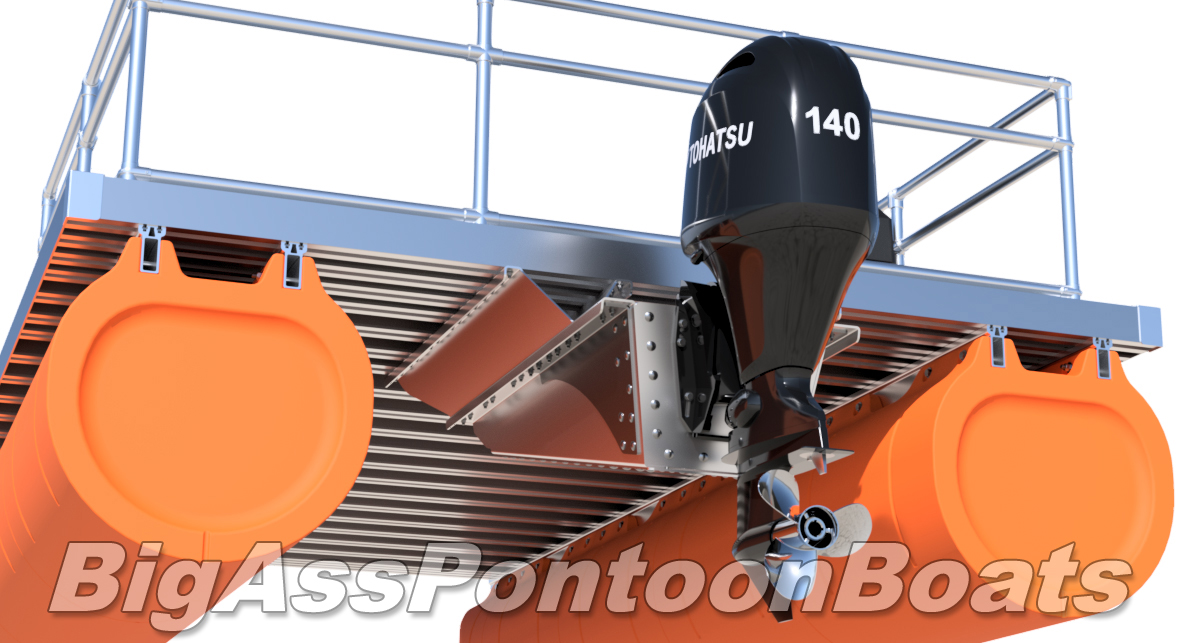

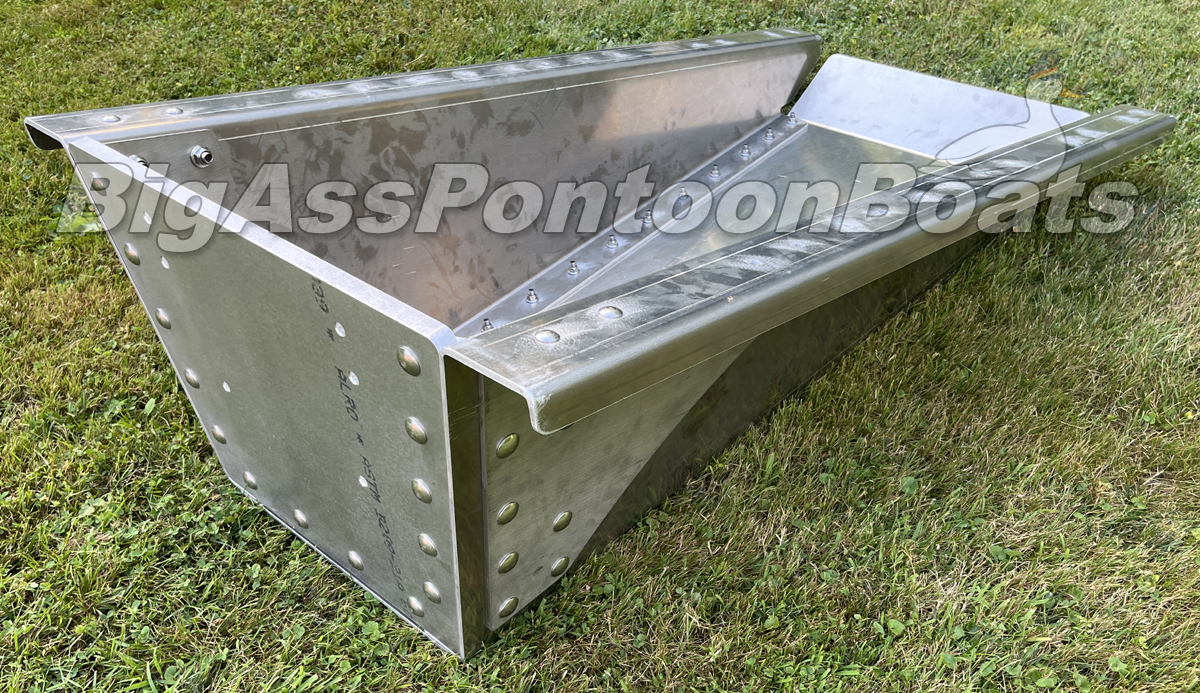

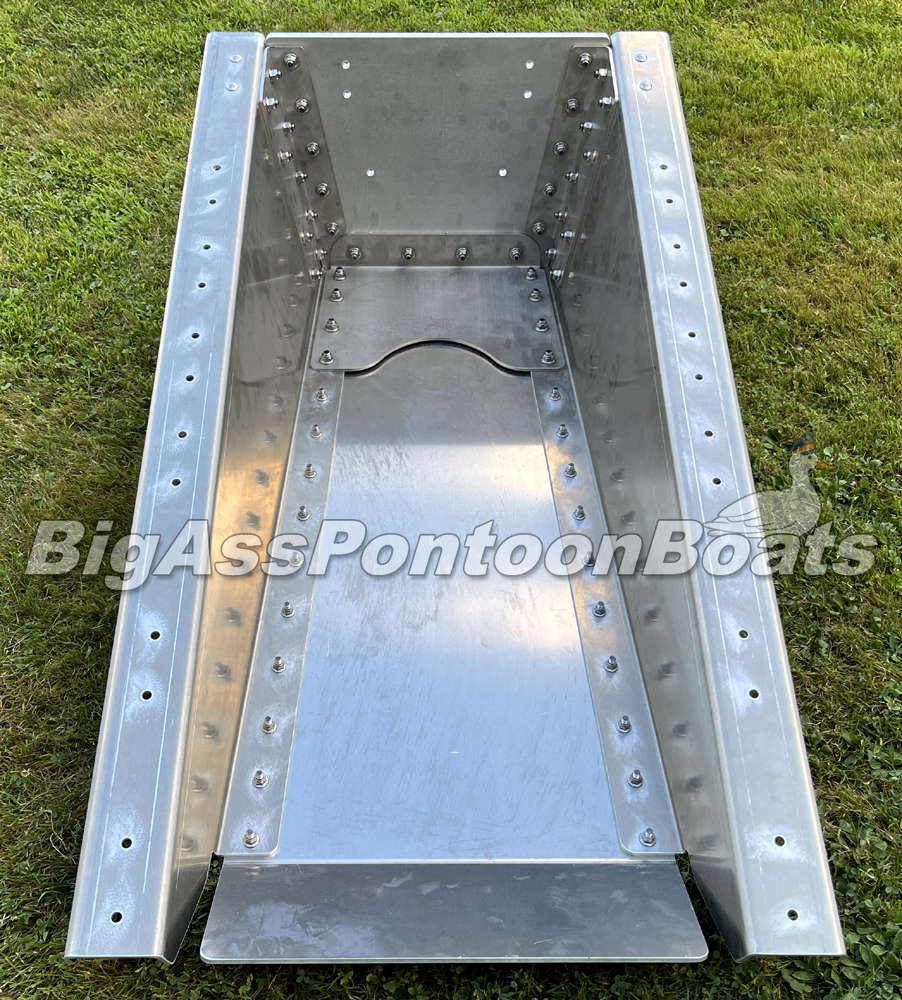

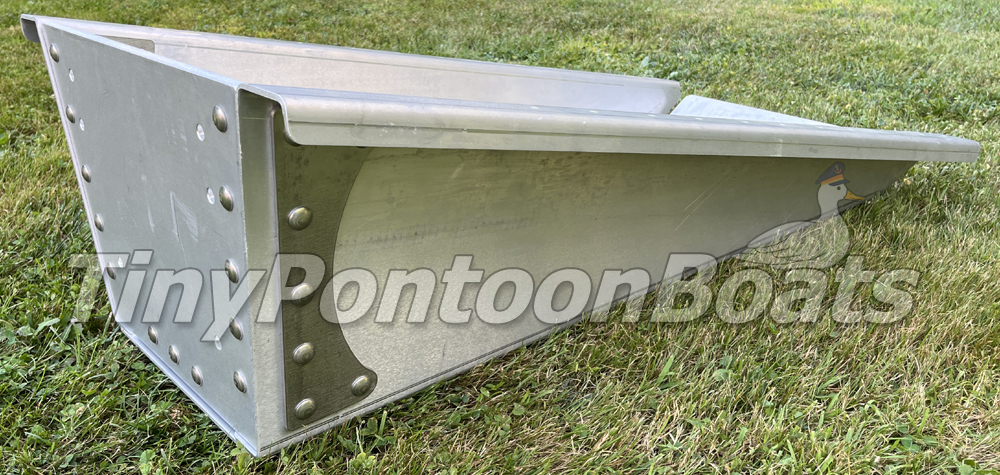

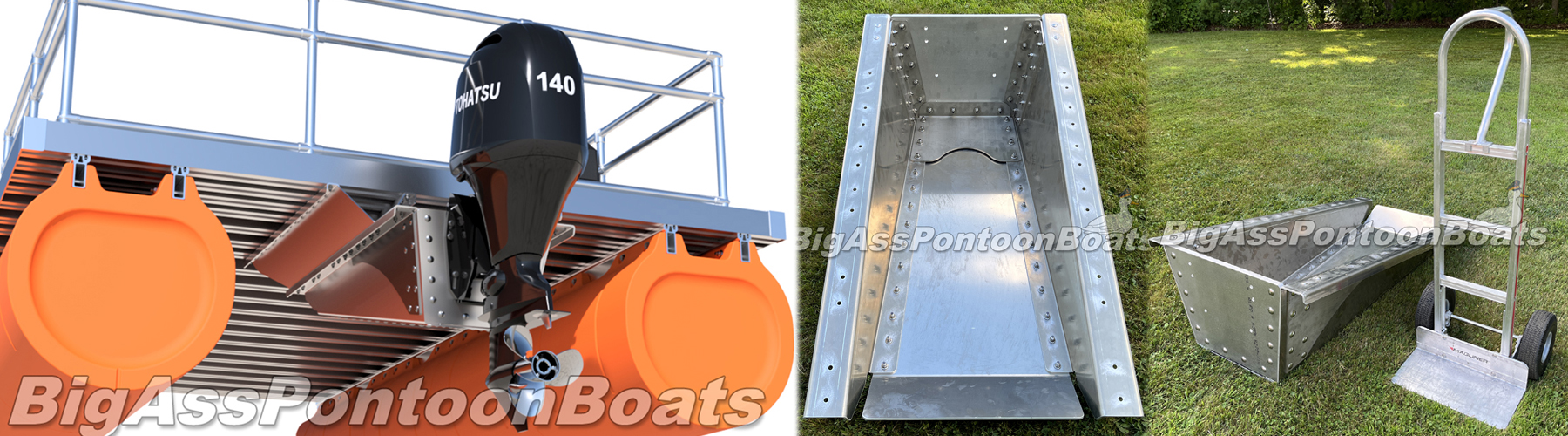

150 HP BOLT-TOGETHER TRANSOM & DROP-BRACKETS
$4875/$7270 Our 150 HP capacity transom systems are super stout and designed for our large barge systems that use our 36" floats. These transoms are rated for motors weighing up to 400 pounds and are made for extra-long shaft outboards (25" shaft length) when used on dual-row (2 rows of flaots) barges or with long-shaft motors when using our drop-brackets (dual or triple-row barges). The ideal motor for this bracket is 100-140 HP for most motor brands. For instance, a modern Tohatsu 140 HP motor is just under 400 pounds, but their 150 has a weight higher than our capacity rating. On the other hand, a 150 HP 2-stroke will be well within the weight limit of this transom.
These engine mounting brackets are monstorous (just over 61.5" long) and are made from formed 1/4" thick aluminum with 1/4" thick stainless reinforcement bracketry inside and outside the transom tub, and a 3/4" thick motor mounting plate. This bracket is held together with 1/2" and 3/8" stainless bolts and assembles quickly. Also, if you ever manage to damage one of these transoms (work barge life can be rough), single components can easily be replaced. Due to the complicated nature of our large work platforms and customer needs, the need for drop-down brackets for this transom will be determined by your application and combination of equipment. Most applications will require our 8" drop-down brackets or lowering spacers of some sort when using our large floats. Please call and speak with us to discuss your needs if powering your barge system and intending to use this transom. Our 150 HP capacity bolt-together transoms are $4875 with mounting and assembly hardware without drop-brackets. If you require our 8" drop-bracket set with this transom, the whole set-up (transom, specialty mounting hardware, and drop-bracket set) is $7270. When being used with our large barge frame systems, attachment to 6 of our heavy-duty hat channel crossmembers is required (includes specialized attachment hardware). Please contact us if you have a custom application.
|
|
|

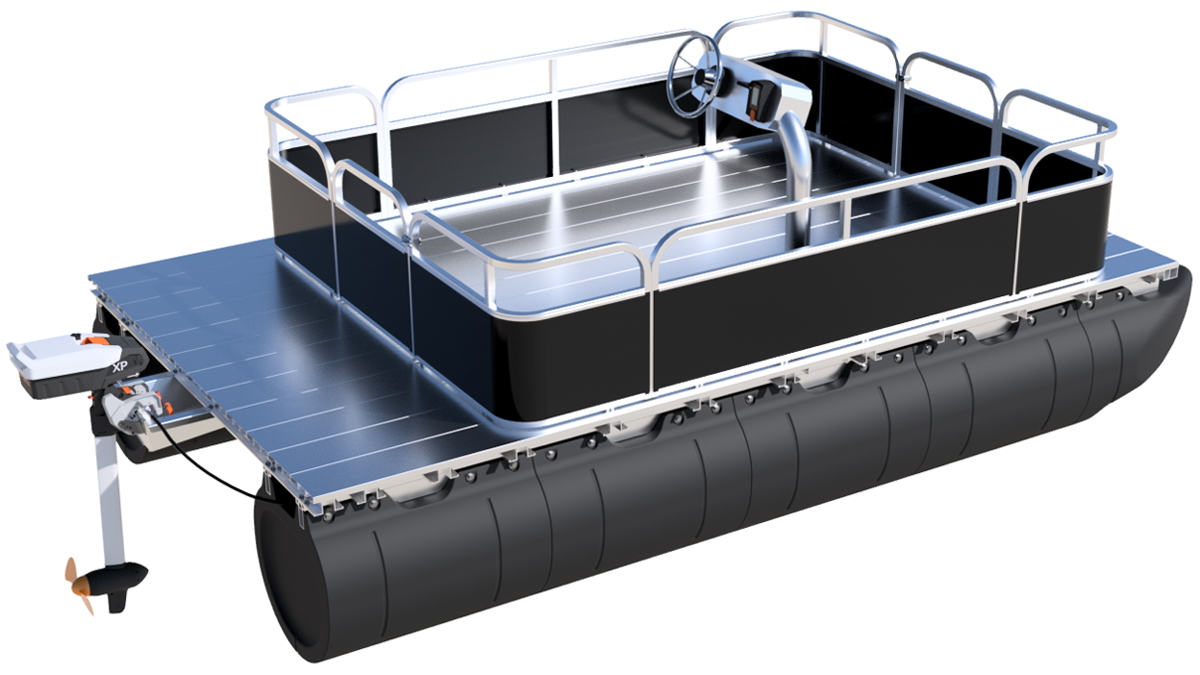

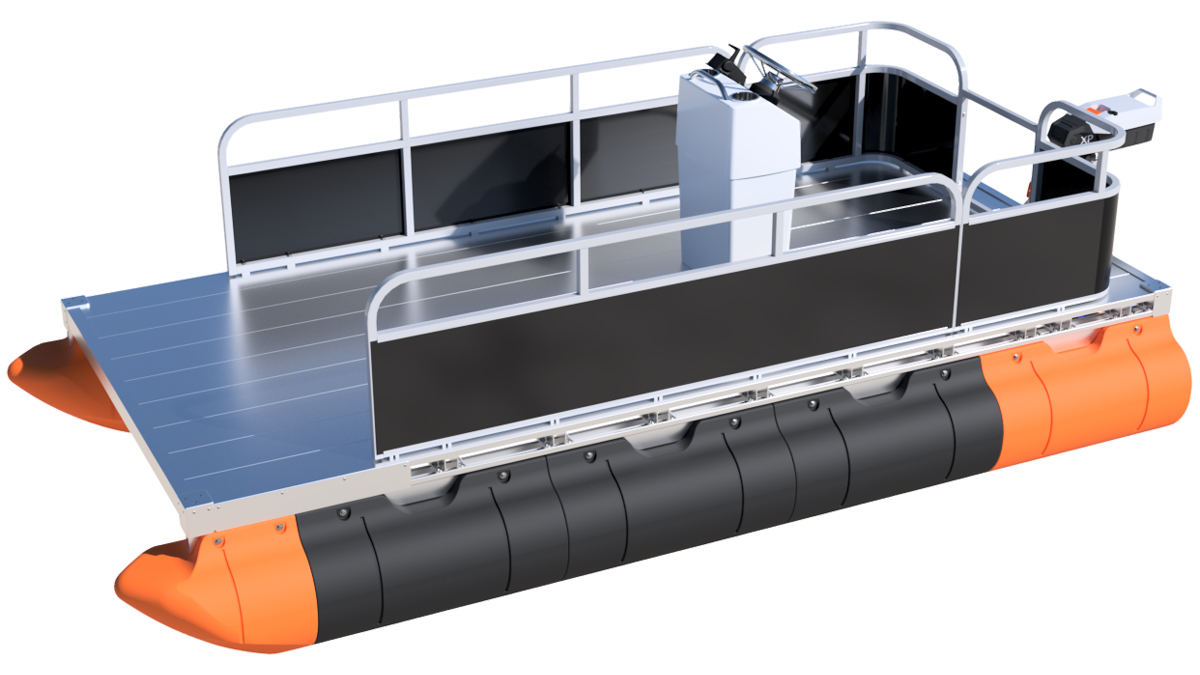

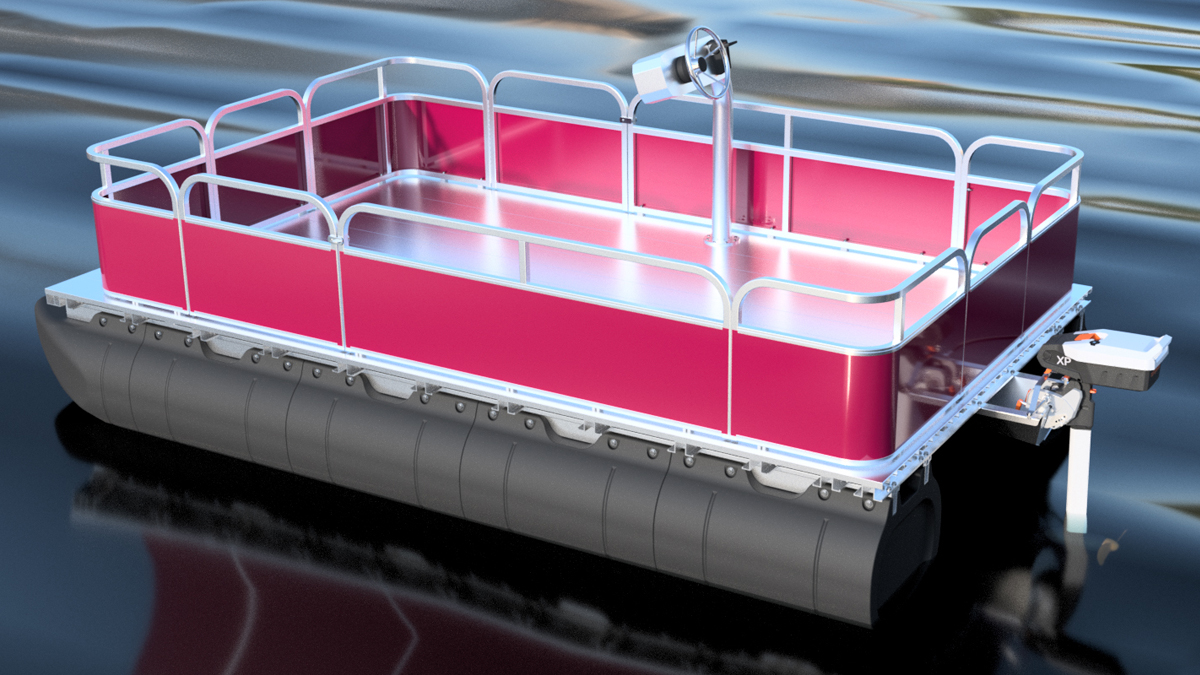

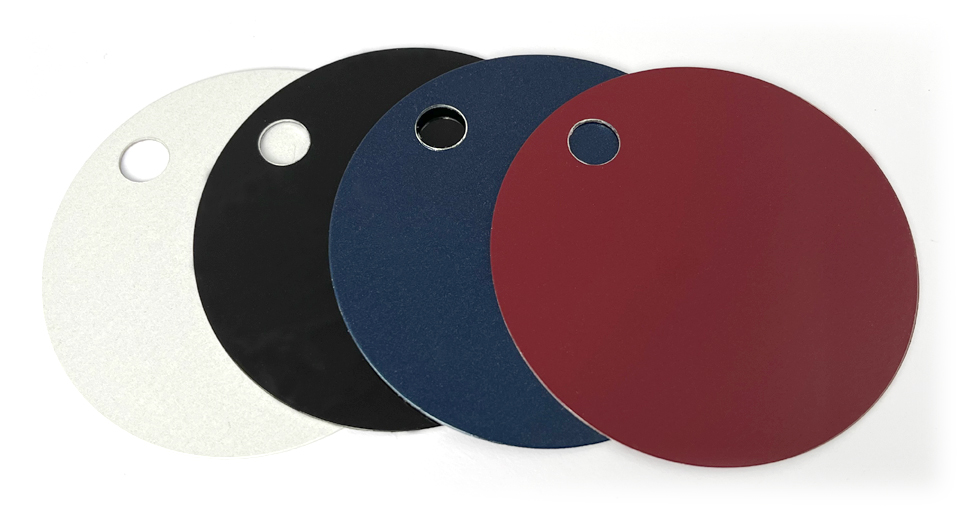

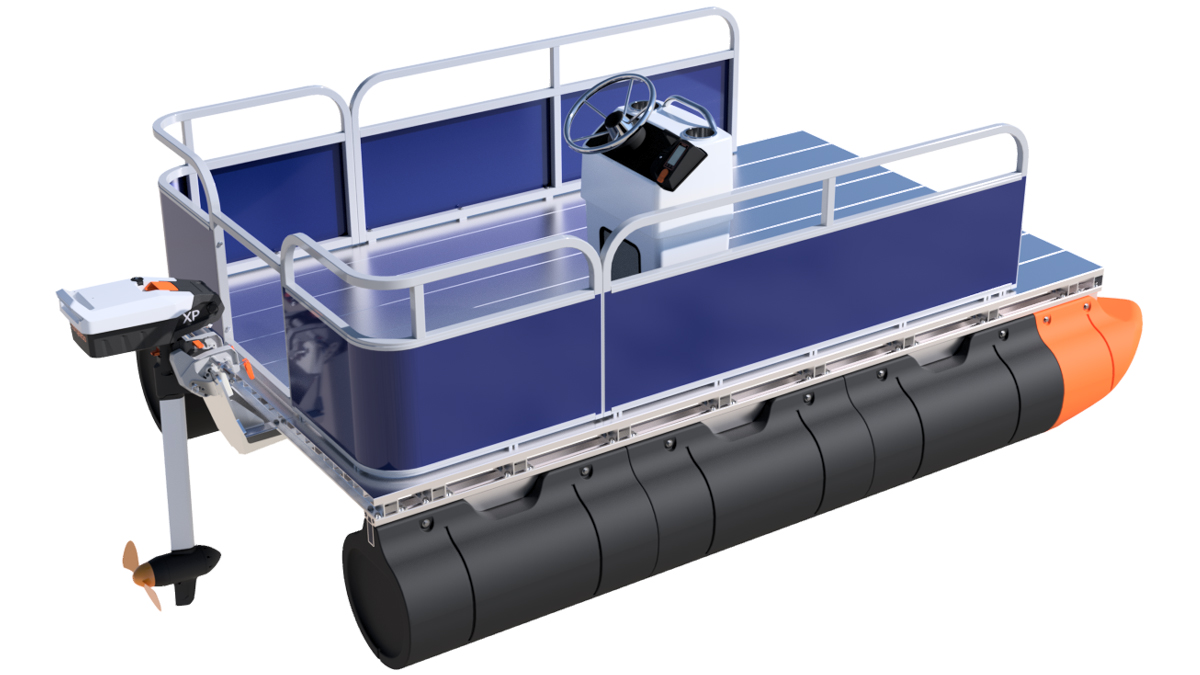

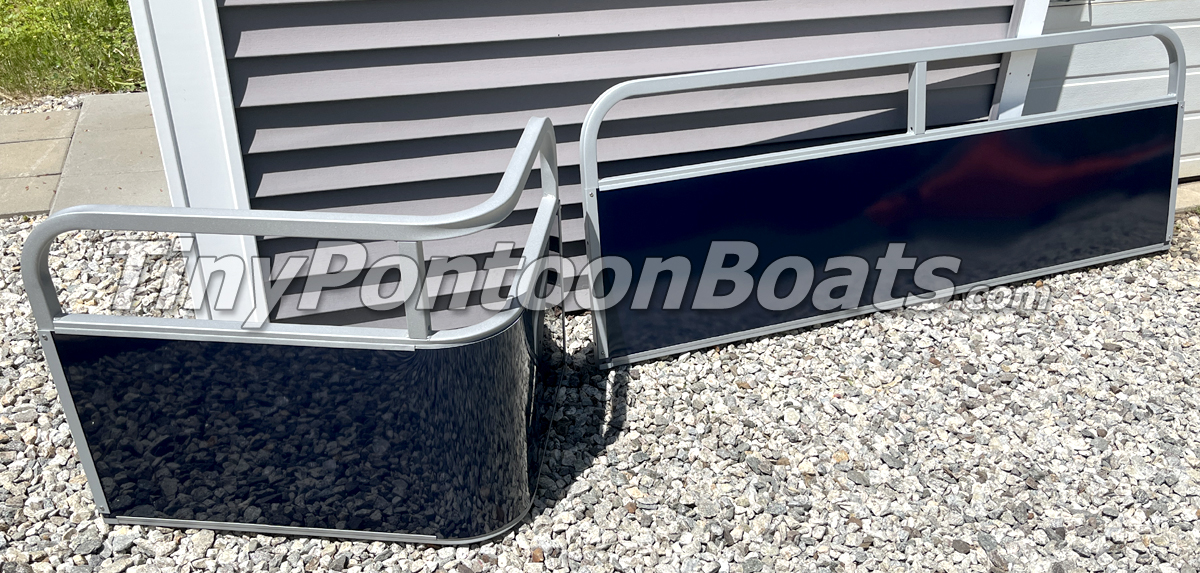

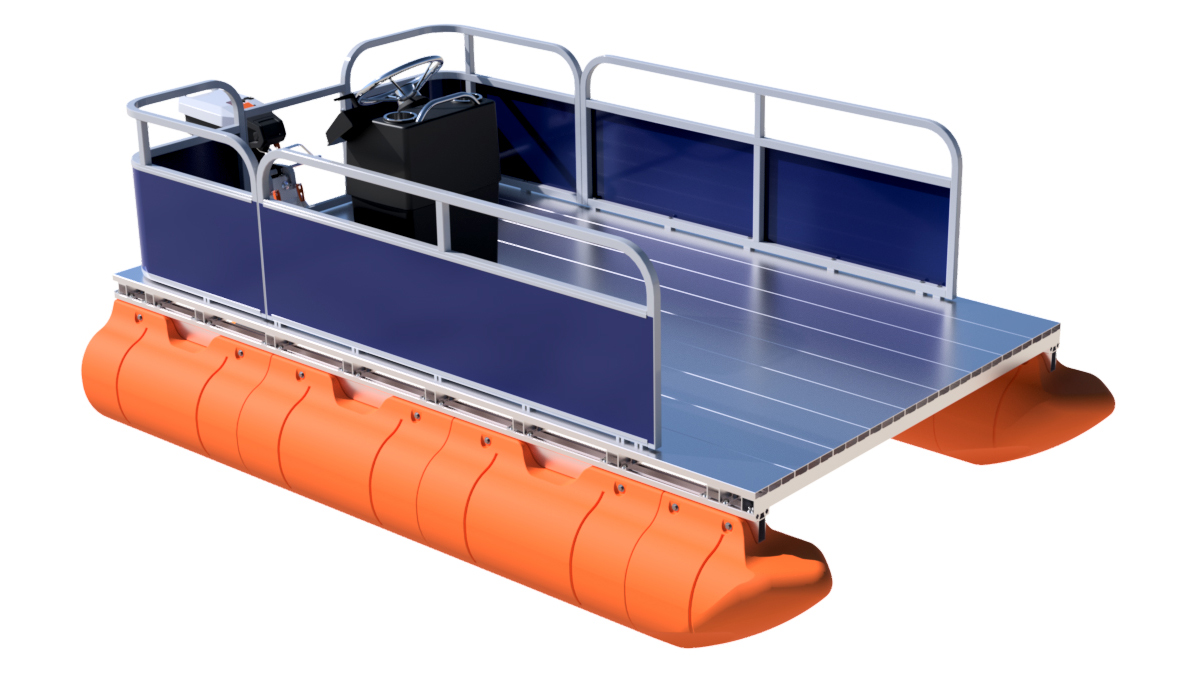

RECREATIONAL FENCE SYSTEMS
NOT FOR INDUSTRIAL USE Our modular aluminum pontoon fence sytems are made for recreational boats and can be arranged many different ways. We offer pre-configured kits for our recreational mini pontoon boats, as well as custom arrangements per request. When purchasing one of our kits, it will include stainless steel installation hardware, 3/8" thick plastic fence spacers, required under-deck bolt backer plates, and other applicable parts and accessores for complete assembly.
Our fence systems are made from industry standard 1 1/4" aluminum square tube with rounded corners, come with 0.032" thick aluminum panels installed, and have a powdercoated finish. When placing your order, you'll be able to select black, white, blue, or maroon color sheet metal. |
|
|

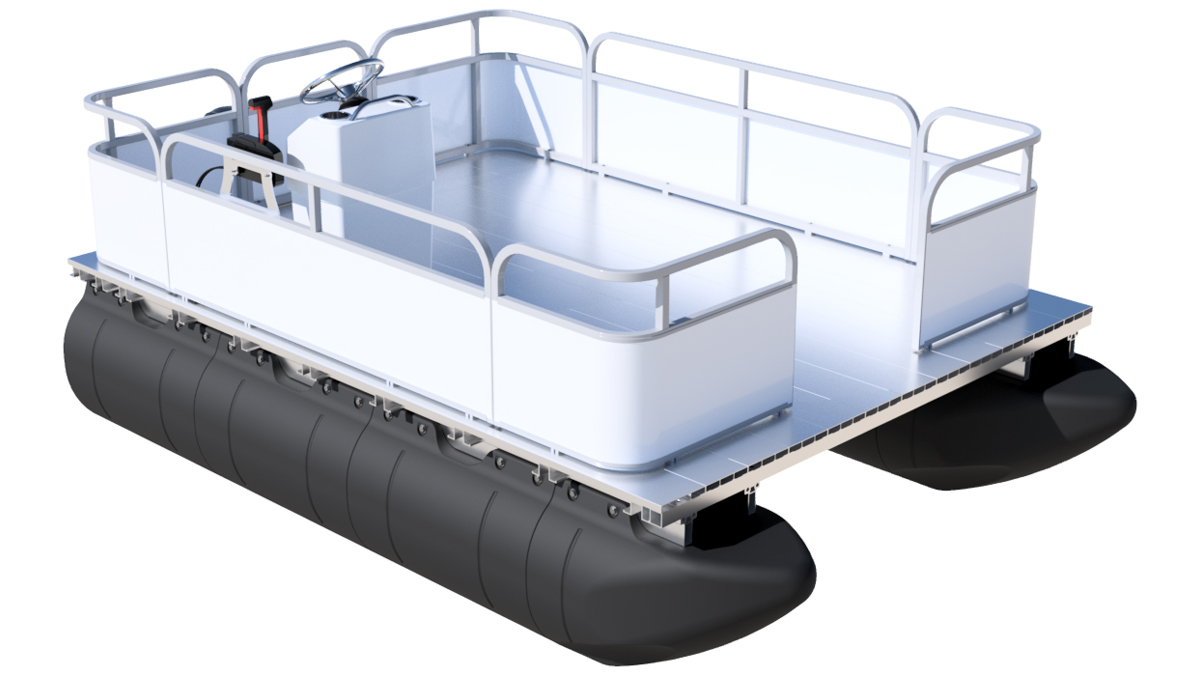

TYPICAL RECREATIONAL FENCE CONFIGURATIONS
|
|
TPB RECREATIONAL BOAT FENCE SYTEMS
Below we have provided prices and diagrams for the modular fence systems we have configured for our line of recreational pontoon boats. These kits include the required hardware for installation on your specific boat system and install easily. Due to the vast number of arrangements that can be put together with this system, we will not be posting specific instructions for each kit, but have provided general instructions below (coming soon). Installation information specific for the fence package you purchase will be emailed after your purhcase is made.
All kits below ship for $250 within the continental US. WE DO NOT OFFER PRE-CONFIGURED KITS FOR OUR 7' WIDE BOATS WITH 27" WIDE FLOATS (8' WIDE ONLY IF SELECTING A BOAT KIT WITH 27" WIDE FLOATS). | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PRE-CONFIGURED KITS
|
|

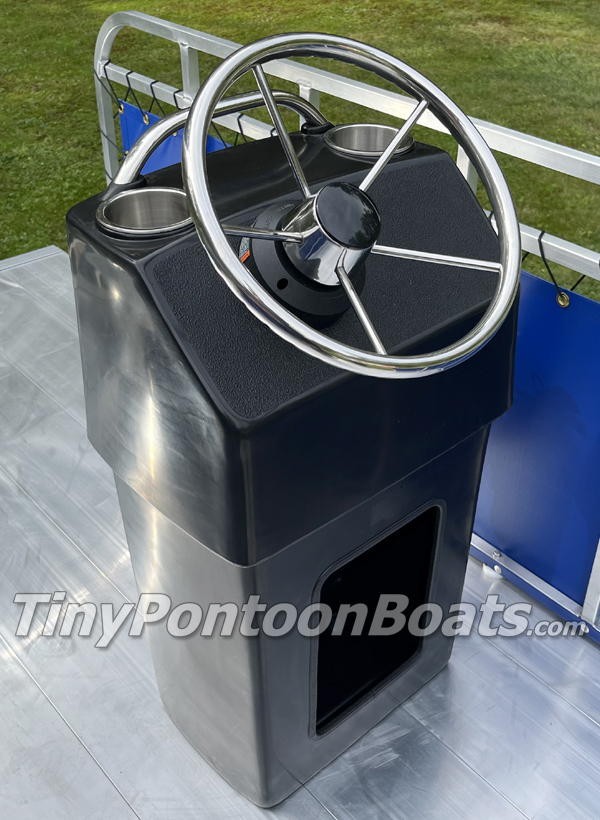

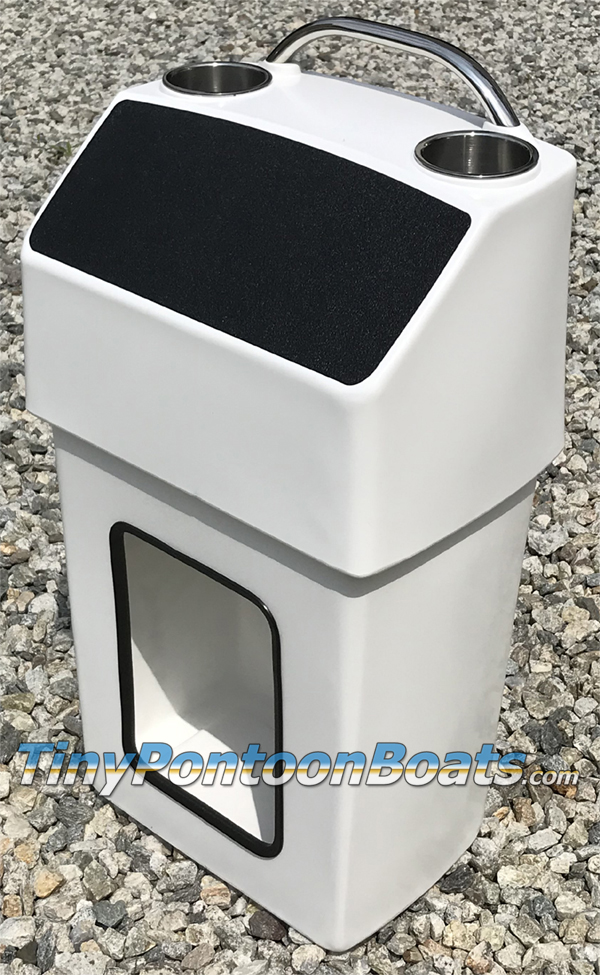

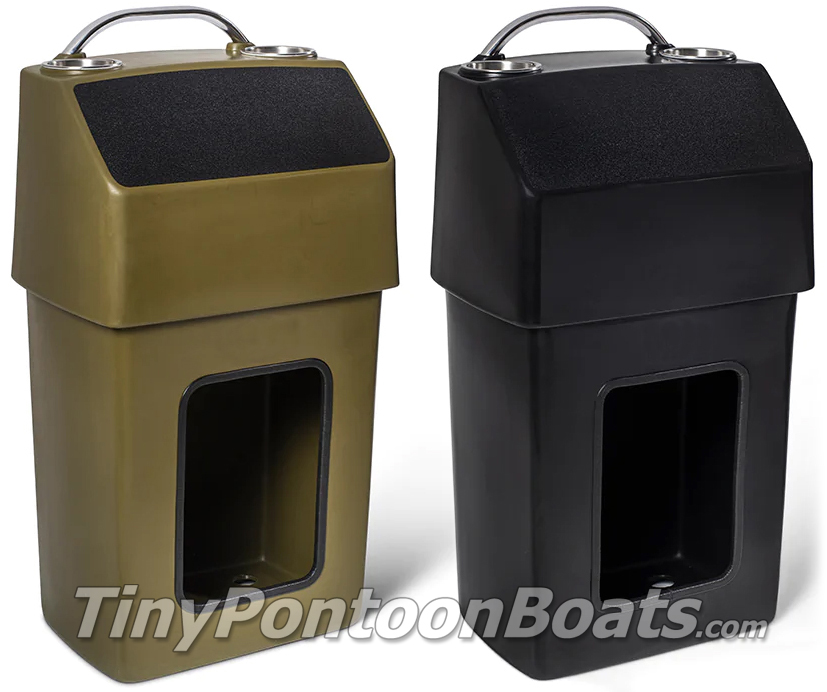

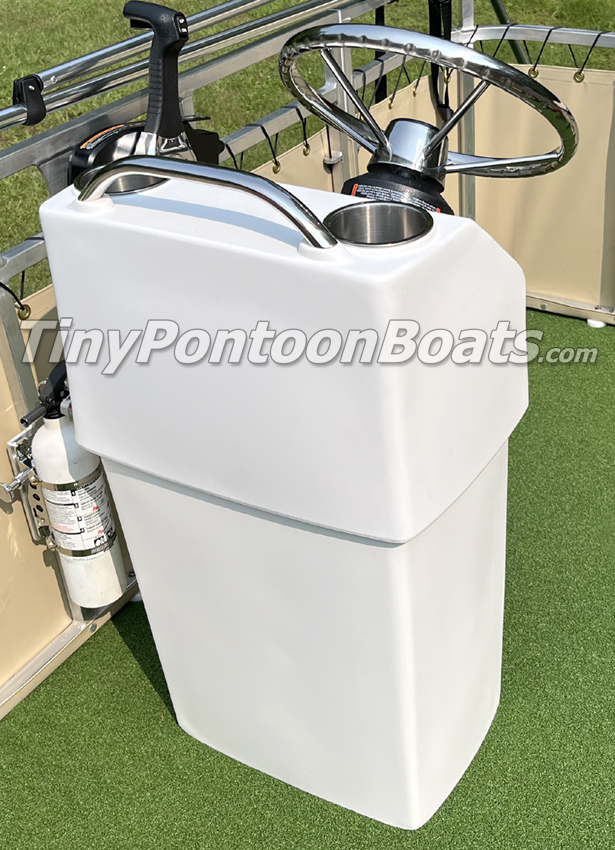

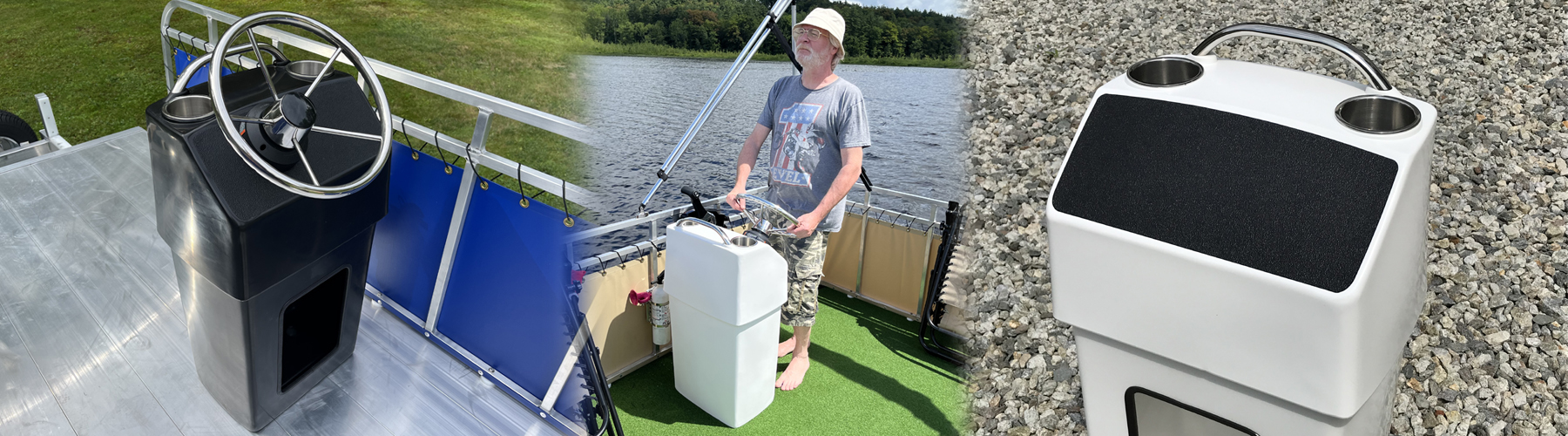

MINI STEERING CONSOLES
$389 Our plastic mini consoles are just the right size for our small boats. They are stout, yet light weight parts that are molded out of HDPE, just like our floats. They come equipped with two stainless cup holders and a handle on the top. These rotomolded control pods have shells that are approximately 0.29" thick throughout and have a 3/8" thick HDPE reinforcement plate behind the dash panel. Overall, they stand 35" tall, are 19" wide, and 13" deep. The top of the plastic portion is 32" tall and the center of the dash panel is approximately 29 1/2" from the base. This sturdy part is made in the US and ships from a partnering facility in NC. Our consoles are available in white, black, and olive green.
The steering wheels shown are not included. Please feel free to contact us for steering system recommendations. -Shipping is $49 within the continental US!
|
|
|

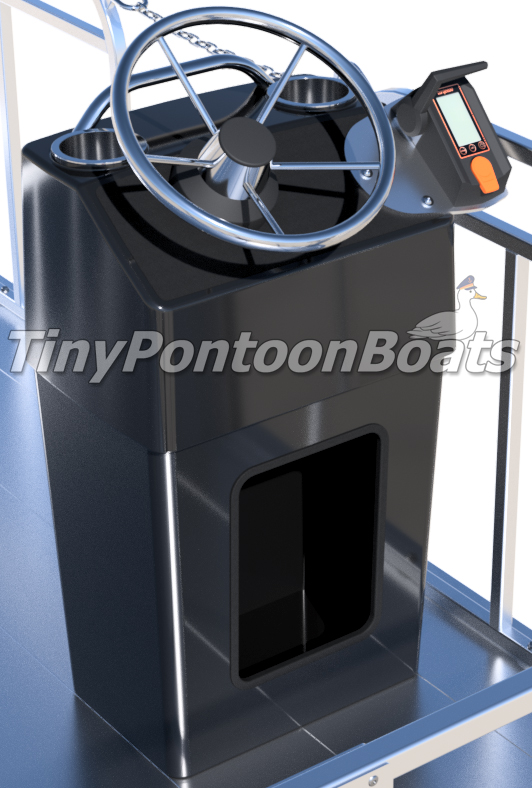

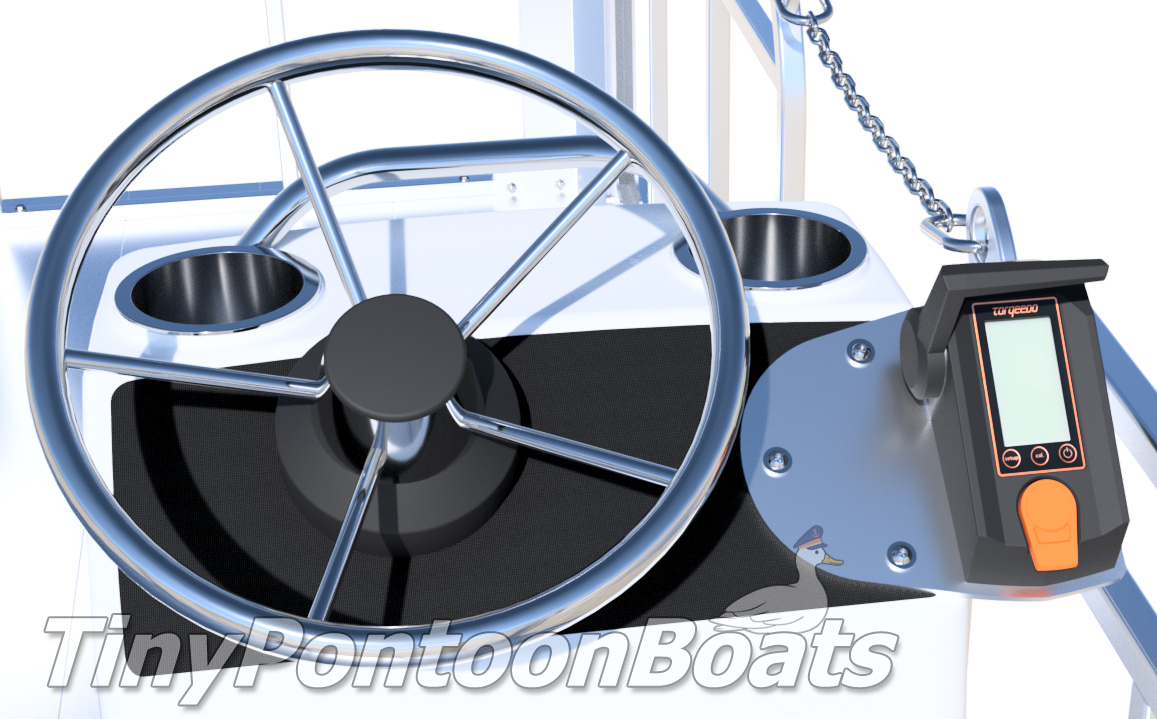

OFFSET MOUNTING PLATE FOR TORQEEDO REMOTE THROTTLE
$85 If you're running a Torqeedo or ePropulsion outboard motor with remote controls and our mini steering console, our 1/4" thick aluminum mounting plate allows you to cleanly mount the control box off the side of the dash panel of the console. When placing your order, we will require details on your electric motor system. The plate itself comes with a bare aluminum finish (not painted) and includes the required stainless mounting hardware.
|
|
|

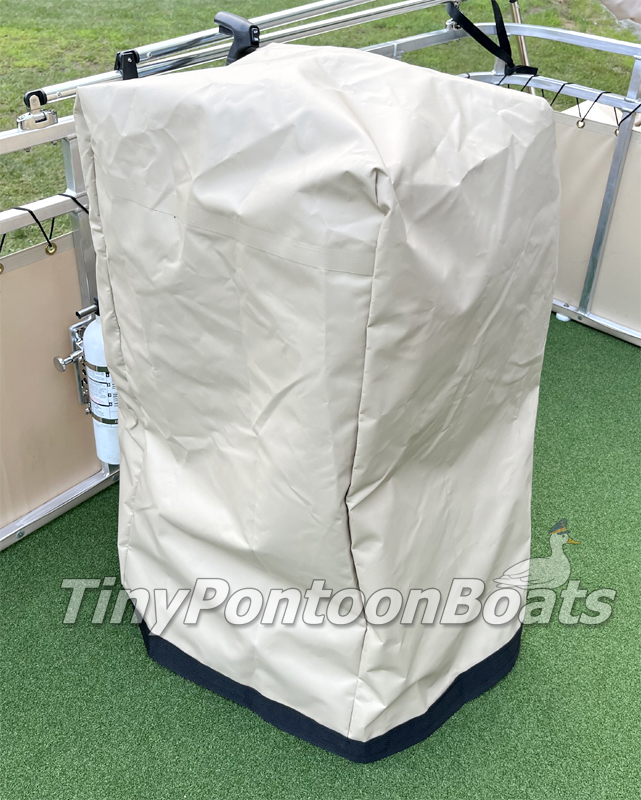

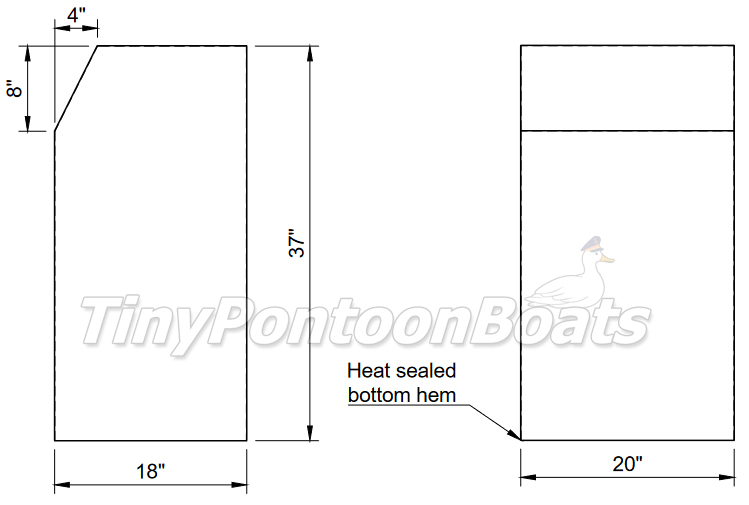

MINI CONSOLE COVER
$149
|
Our mini steering console covers are made from an 18 oz poly/vinyl fabric with 2" reinforcement webbing at the bottom. These are form-fitting covers made to fit our mini console with a steering wheel mounted and are made from the same super tough materials as the compact tractor covers that we make in another end of our business. This is a great way to keep your steering pod dry and protected, especially for winter storage.
|
|

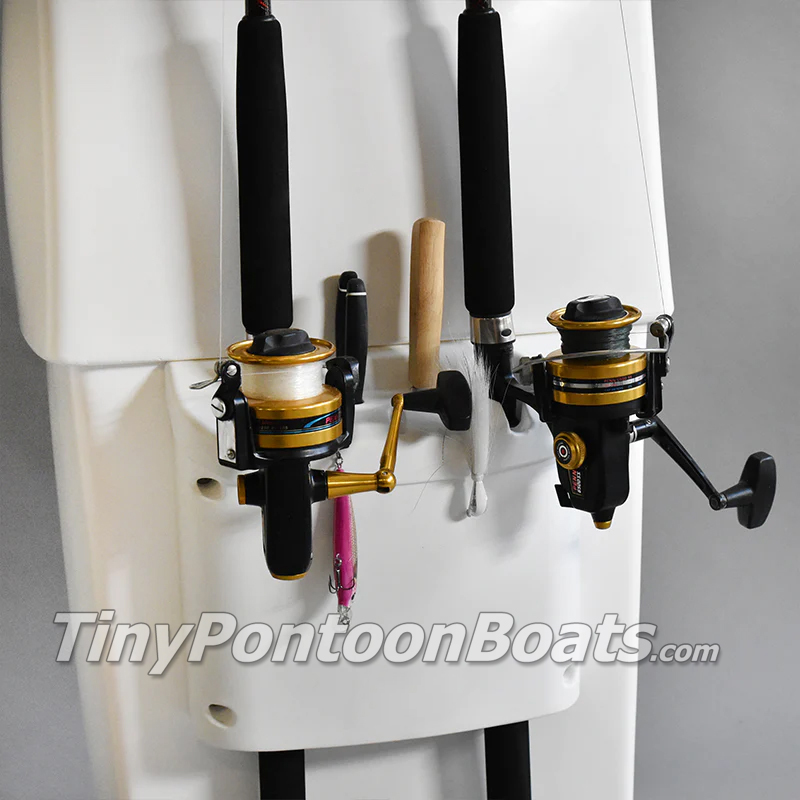

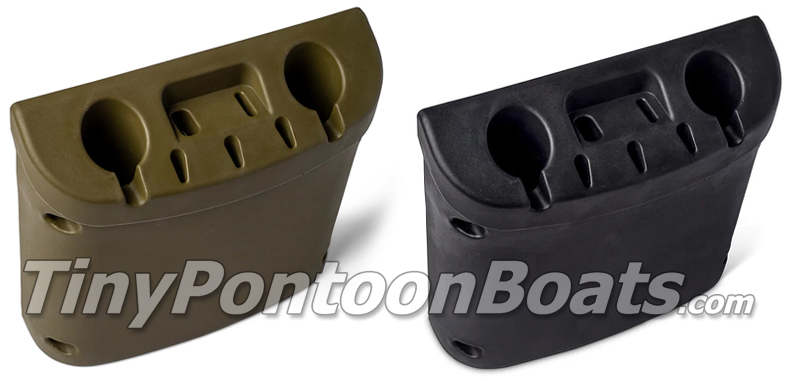

FISHING ROD HOLDER
FOR MINI CONSOLE $75
|
If you're using your mini pontoon boat for fishing, our HDPE fishing rod holder is a great add-on. This fishing pole holder bolts to the front of our mini console and holds 2 rods and other gear. This sturdy gear holder is available in white, black, olive green, and orange to match our consoles.
When purchased with a console, there's no additional shipping charge.
|
|

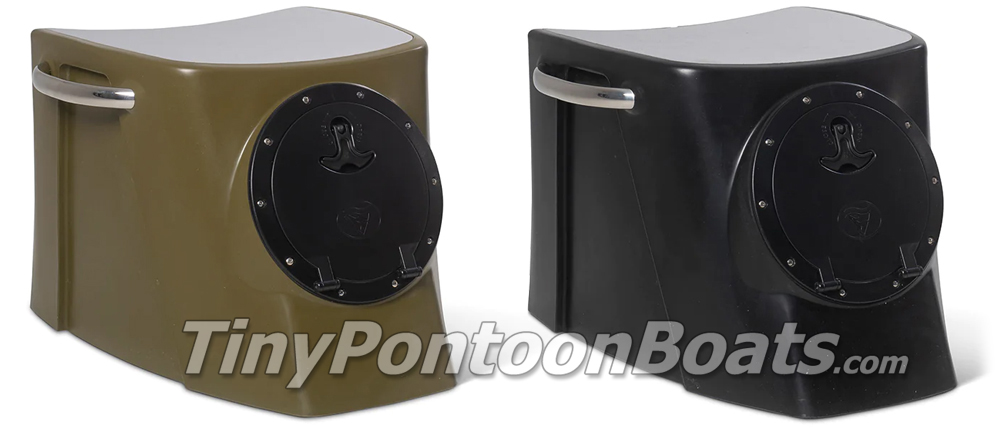

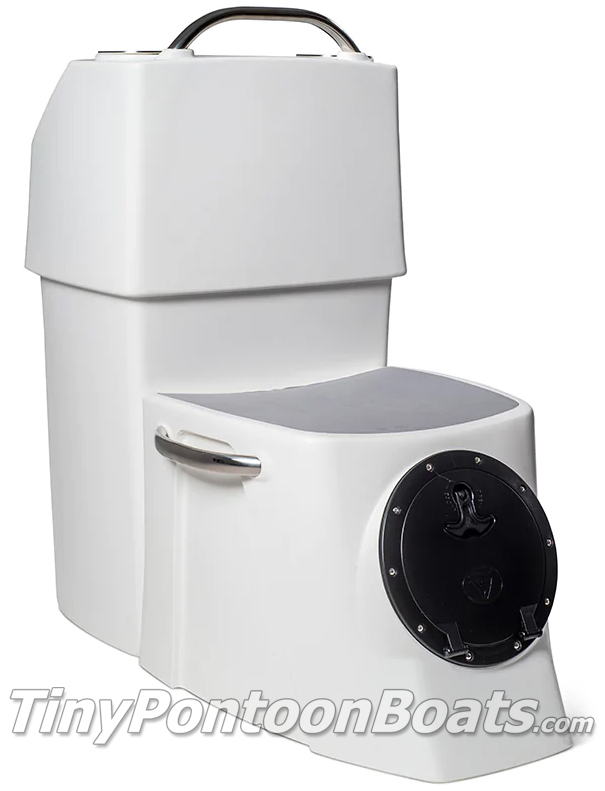

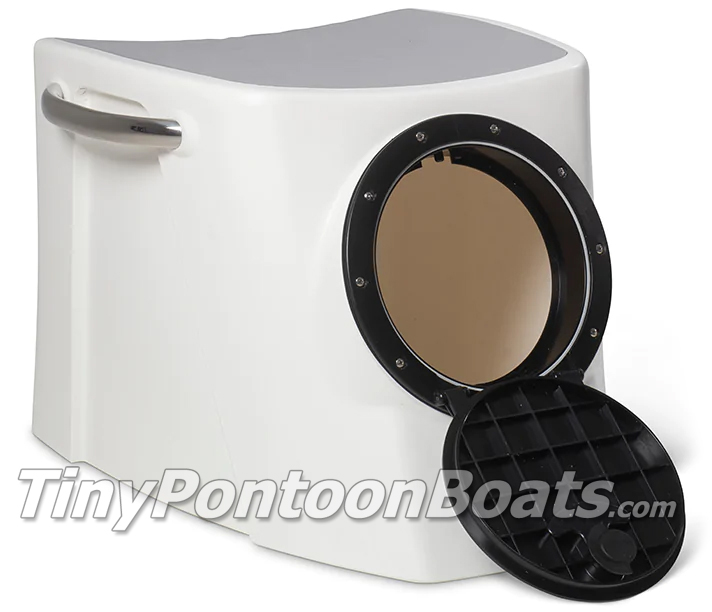

JUMP SEAT & STORAGE UNIT
FOR MINI CONSOLE $382
|
Providing 16 gallons of dry storage, our jump seat is designed to fit against our mini console and is a great add-on if you're building a center-console boat. This item has a 12.9" long and 17" wide footprint, and stands 15.2" tall. Made from super sturdy HDPE, this storage unit is large enough to fit all the things you need to stay dry for a day out on the water. Also, there's a foam pad on the top that makes it comfortable to sit on. Please be aware that
this storage unit does not work with our fishing rod holder when mounted against our mini console. This item is available in white, black, olive green, and orange.
-Shipping is $49 within the continental US!
|
|

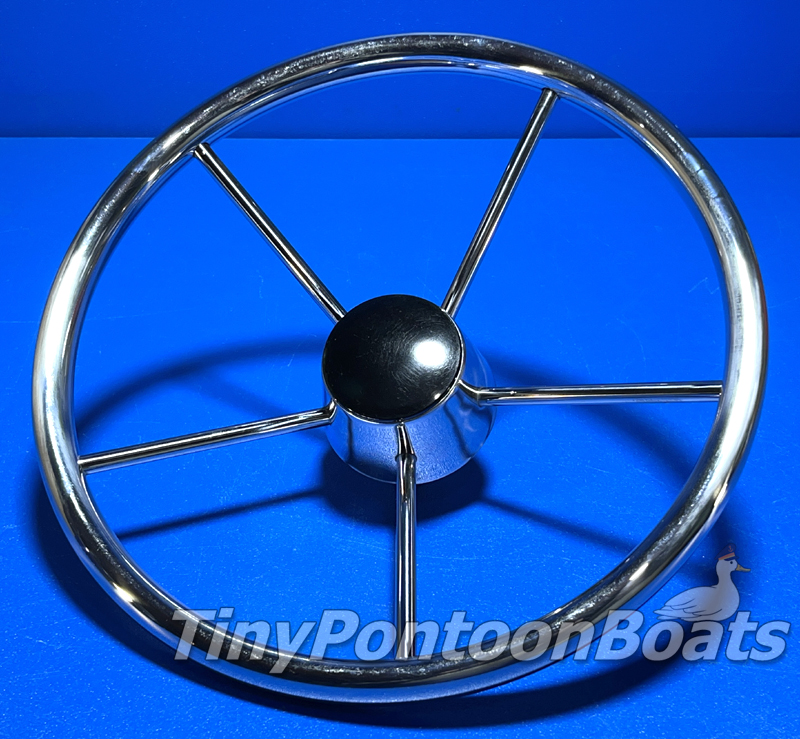

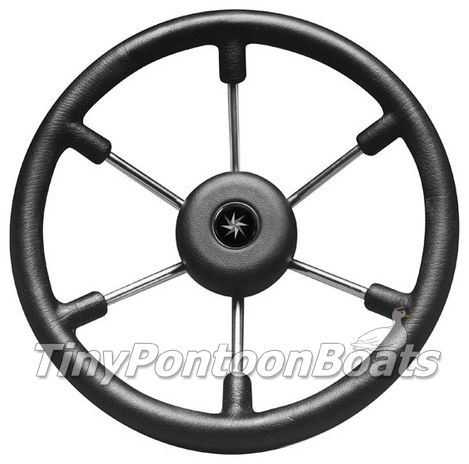

STEERING WHEELS
$95/$135
These two wheels are our preferred parts when building remote steer boats. The wheel in the uppper picture is a stainless steel destroyer style wheel with a 13.5" outside diameter. The lower wheel is a stainless steel unit with a thick rubber coating for comfort, especially on cold days. Either wheel is appropriately sized for our mini steering console above and fit 3/4" tapered shafts. The stainless destroyer wheel is available for $95 and the rubber-grip wheel is available for $135.
|
|
|

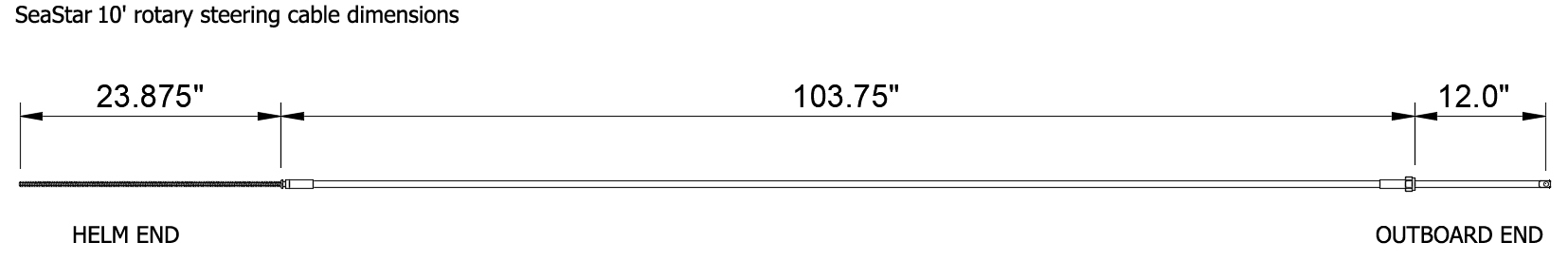

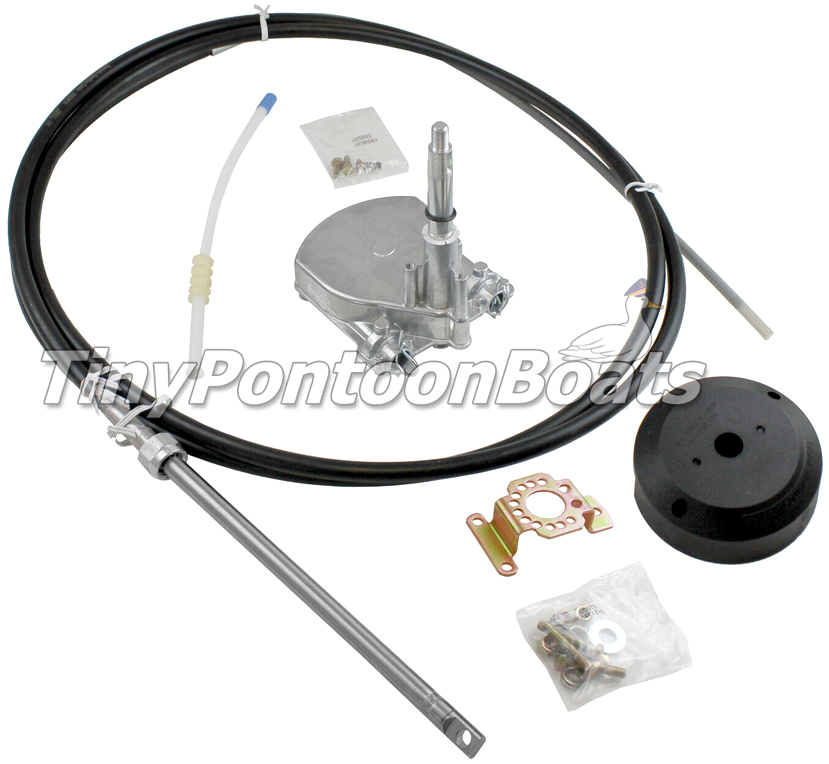

TELEFLEX CABLE STEERING SYSTEM
$227/$376 W/CONSOLE MOUNTING KIT
|
The Teleflex (made by SeaStar Solutions) cable steering system is our go-to when it comes to building remote-steer boats. This is what TeleFlex calls their "QC Rotary Steering System" as the cable is eaily removed and held in place with a pin. This system has been in production for ever and replacement parts are easy to find if ever necessary. When ordering one of our cable-steer kits, the cable is available with a length of 8' to 23' and the price remains that same. If you're running one of our HDPE Mini Steering Consoles, a fitment hardware kit is required.
|
|

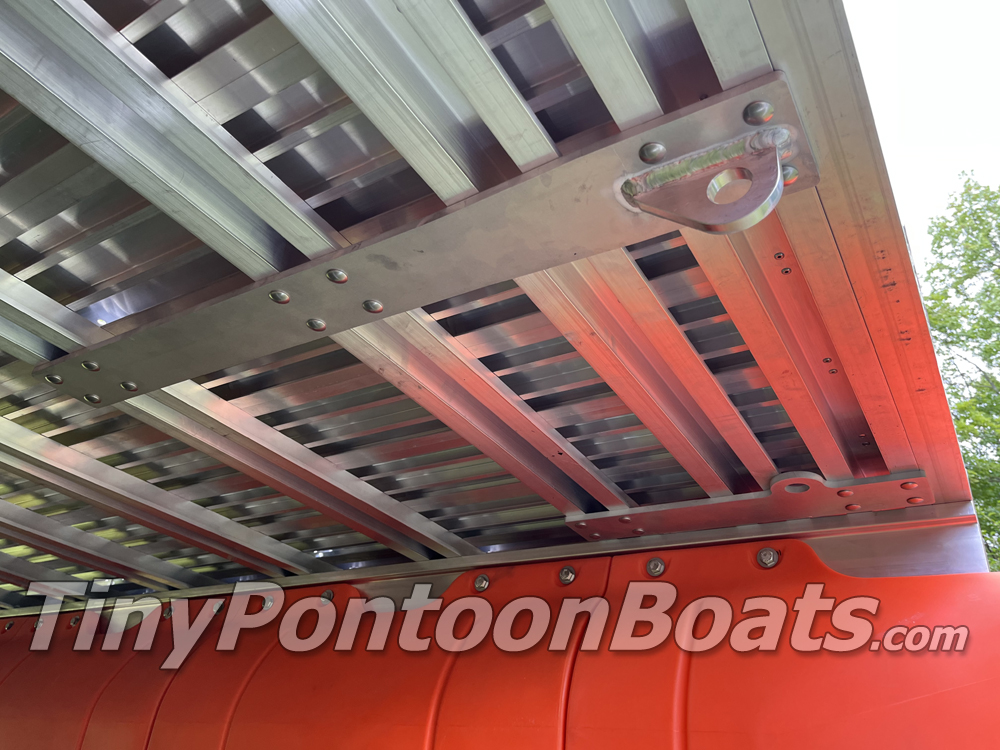

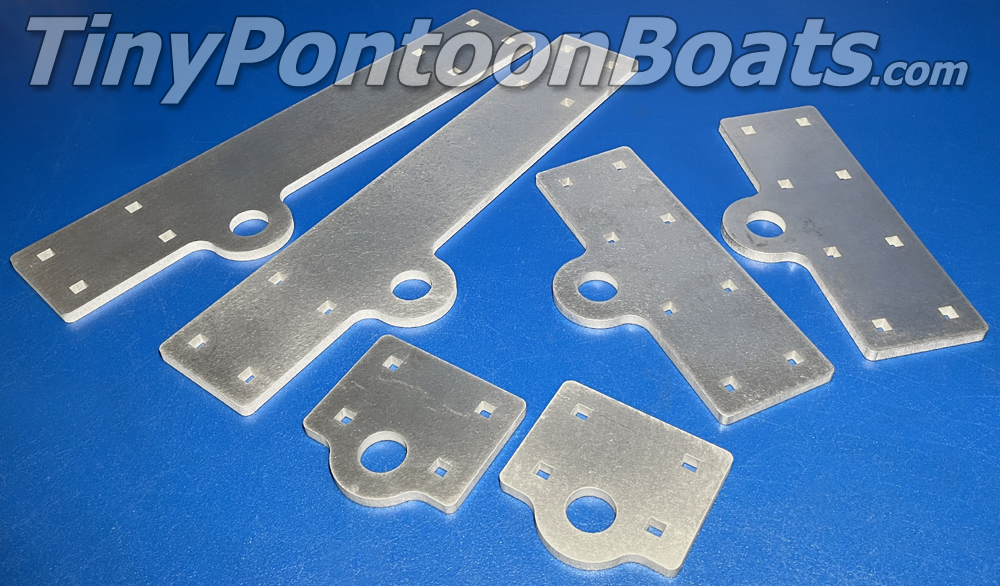

TIE-DOWN PLATES FOR TRAILERING
$274-$721/SET OF 4
|
If you need to trailer your boat or work platform and want a simple and sturdy place to connect your ratchet straps, this is the way to go. Our tie-down plates are cut from 3/8" thick aluminum and include low-profile 3/8" stainless carriage bolts and flange lock nuts. The arrangement required for your boat or work platform depends on which kit you go with. Larger boats require fastening to multiple crossmembers with each plate, whereas small boats require plates that bolt to a single crossmember. Pricing for our most popular kits is listed below. When purchased with a boat or work platform kit, the mounting holes come pre-machined in the required crossmembers to make installation easy.
Tie-down plate set pricing: 6'x11' recreational boat: $274
6'x9' work platform: $274
6'x10' D-N robotics boat: $274
7/8'x12' recreational boat: $640
8'x9' work platform: $721
|
|

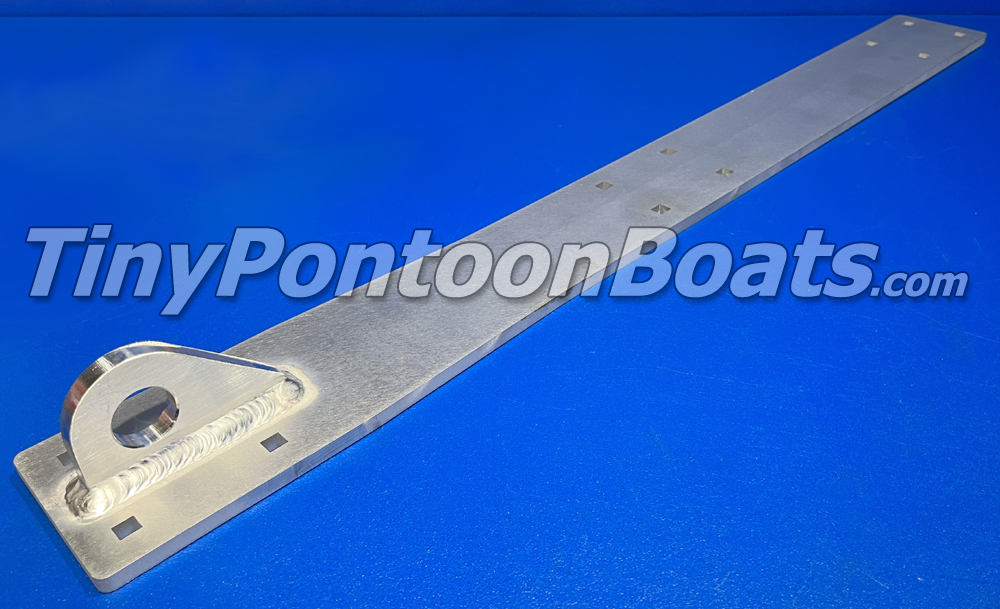

TRAILER WINCHING PLATE
$339
|
Our aluminum trailer winch plate has a 3/8" thick base plate, welded-on 1/2" thick pull ring, and includes low-profile 3/8" stainless carriage bolts and flange lock nuts. The plate bolts to 3 crossmembers on our boat or work platforms and makes for a convenient and stout place to connect your winch hook. When purchased with a boat or work platform kit, the mounting holes come pre-machined in your front three crossmembers to make installation easy.
|
|

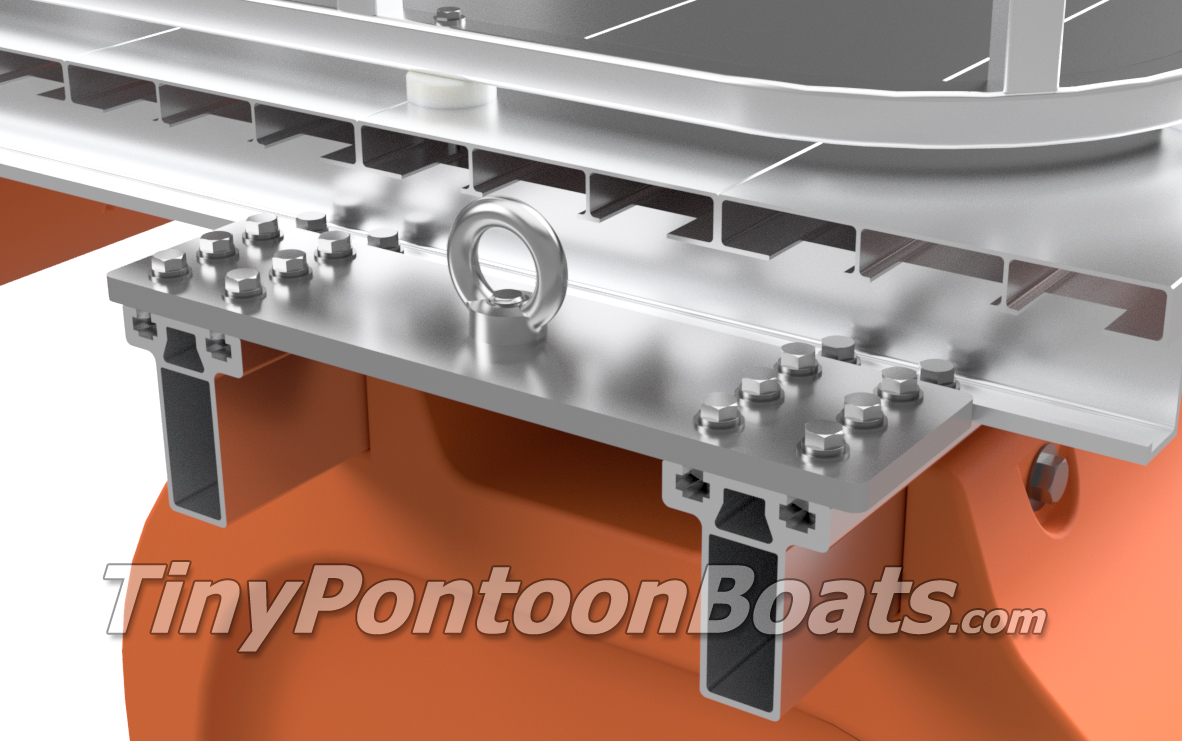

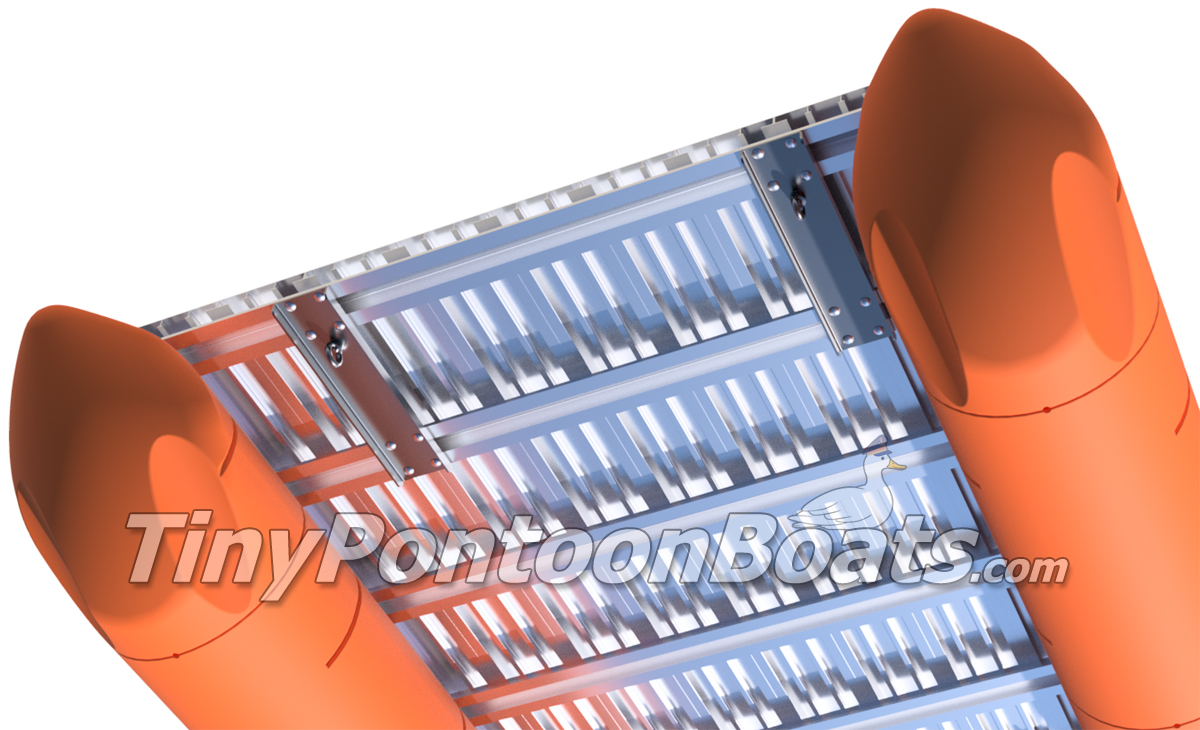

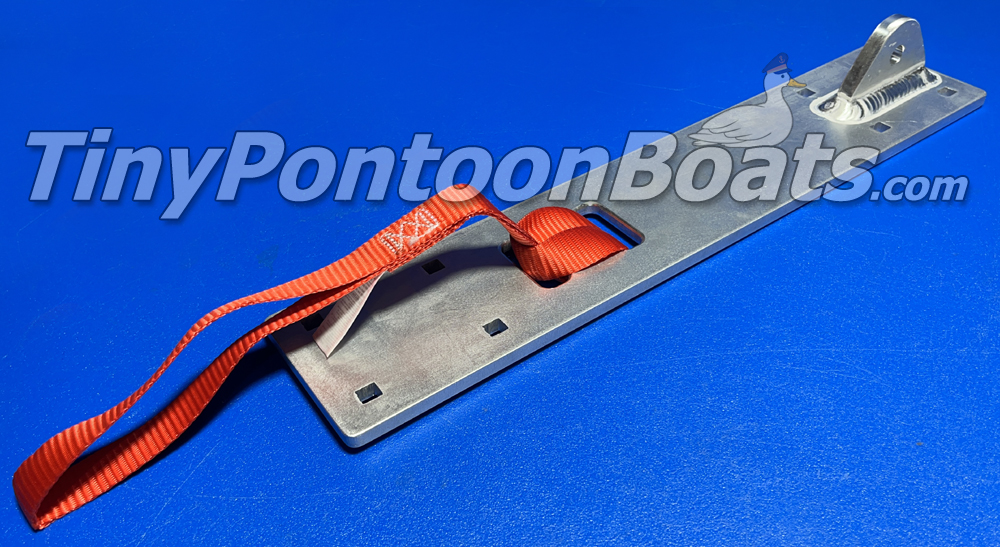

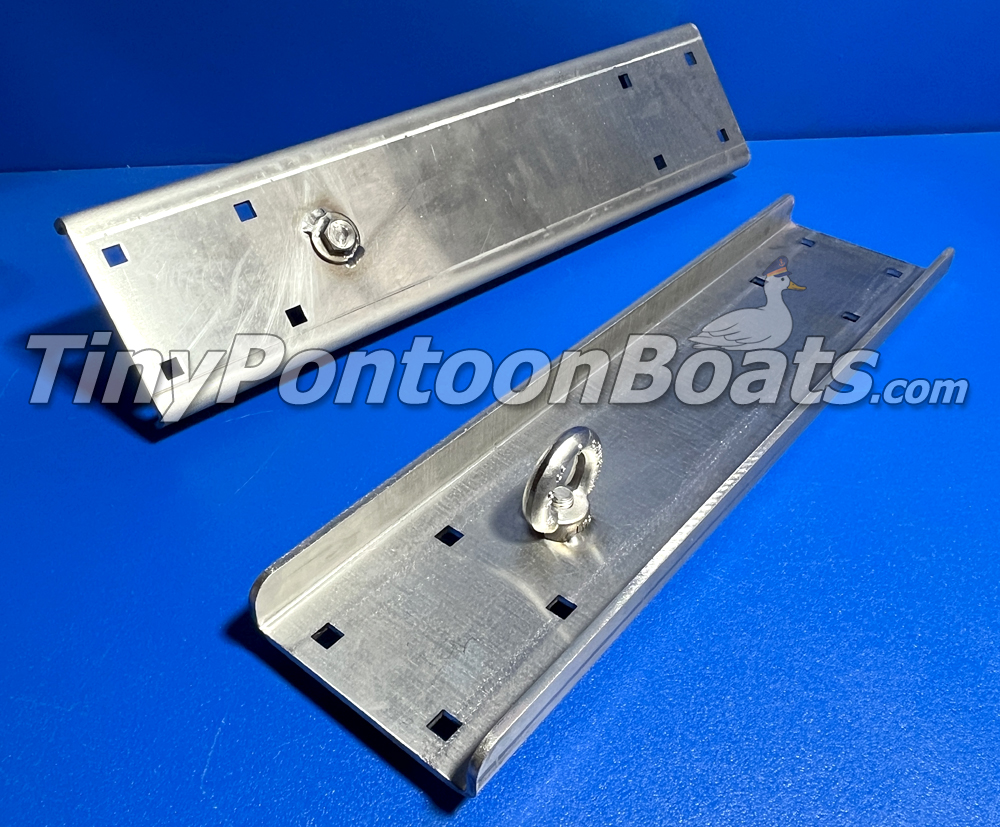

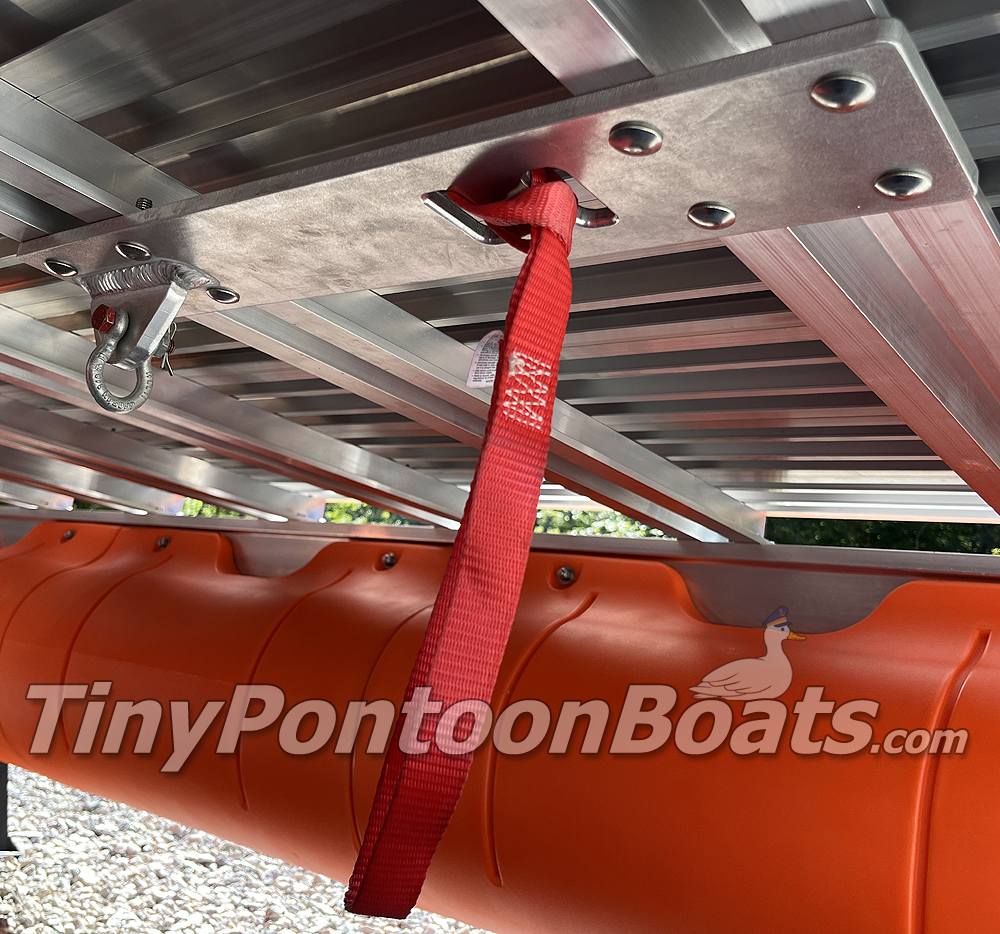

MOORING / ANCHORING PLATES
-CONTACT US FOR PRICING-
|
Often used on our robotics platforms or blunt work platforms, our anchor plates allow you to safely anchor your platform in place in both still water and high-flow applications. This is a common need for those using our sytsems for water testing, security and safety warning rafts (think of warning boats ahead of dams), and all sorts of other applications. We have whipped up many different versions of these plates, but what we show here is most common.
One option shown here is an all-aluminum plate that has mounting points for clevis-type shackles and a pull-strap. The pull strap is super handy as you can use if for either a handle or a place to attach your trailer winch line. This arrangement uses stainless carriage bolts and typically bolts between two crossmembers (3 for larger boats). The other option we show here is our stainless steel plate option, which is typically installed as a batch of 4 plates per pontoon platform system. These are formed from hefty 3/16" thick 304 stainless plate with bolted/welded in 1/2" thick, lift-rated stainless lashing rings. This option is typically used when you're in a high-flow and high-tension scenario and also attaches between 2 crossmembers with 3/8" carriage bolts. When purchased with a boat or work platform kit, the mounting holes come pre-machined in your crossmembers to make installation easy.
|
|

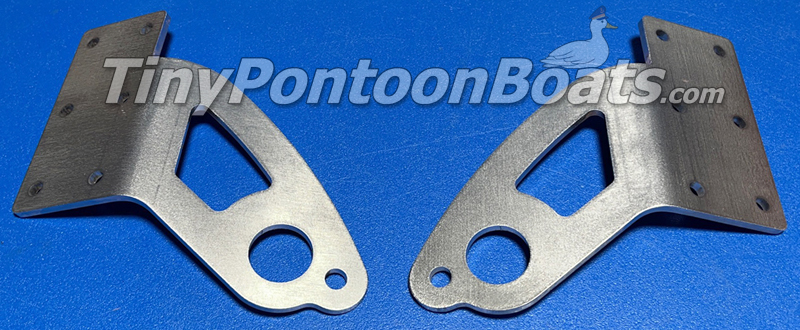

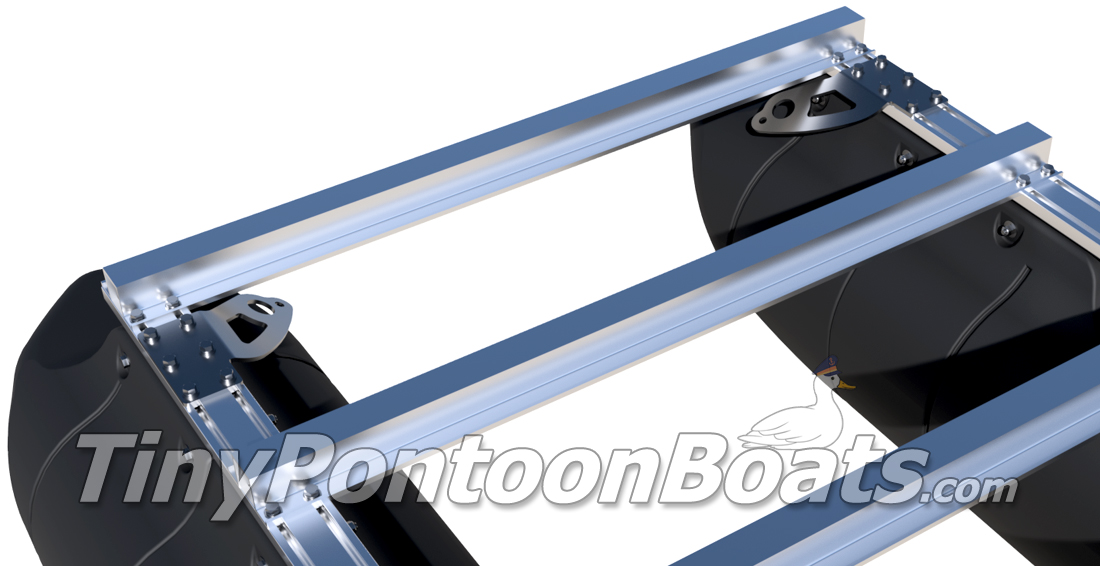

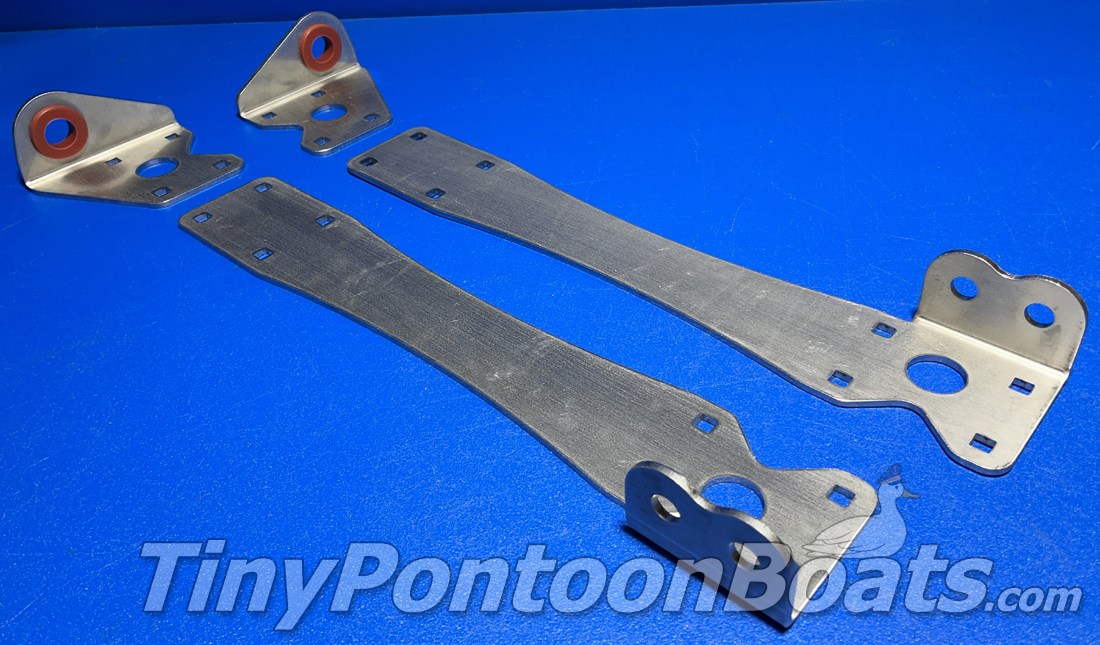

TOW PLATES
-CONTACT US FOR PRICING-
|
If you need to tow one of our small pontoon boat or platform systems out on the water, these plates are an easy to bolt-on option. This design is typically used on our mini boat systems with 18" floats and are made to bolt onto the pontoon assembly main beams. The shape of these tow plates allow attachment of tow hooks, straps, or 3/8" shackles. Customers who use these are typically towing our tiny vessels for surveying, water testing, and UXO hunting. We typically make these from 3/16" or 1/4" thick 304 stainless plate and include mounting hardware.
|
|

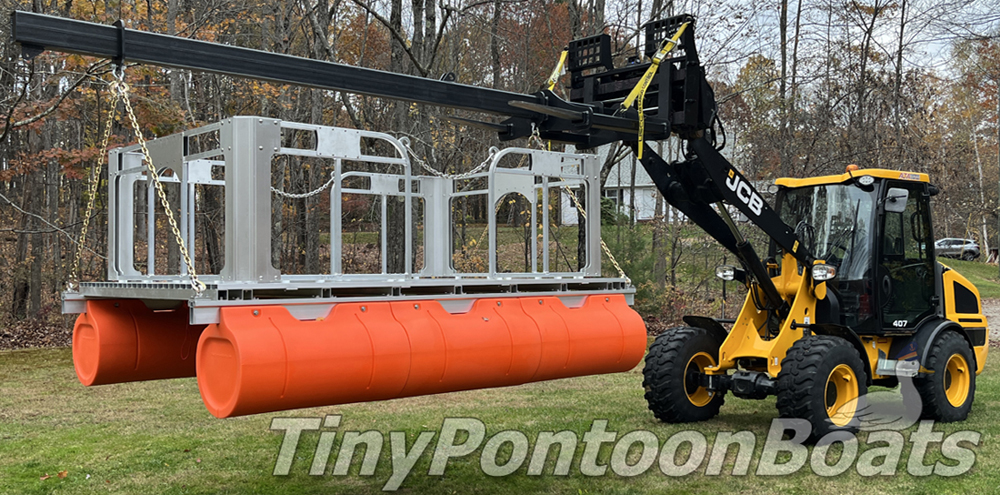

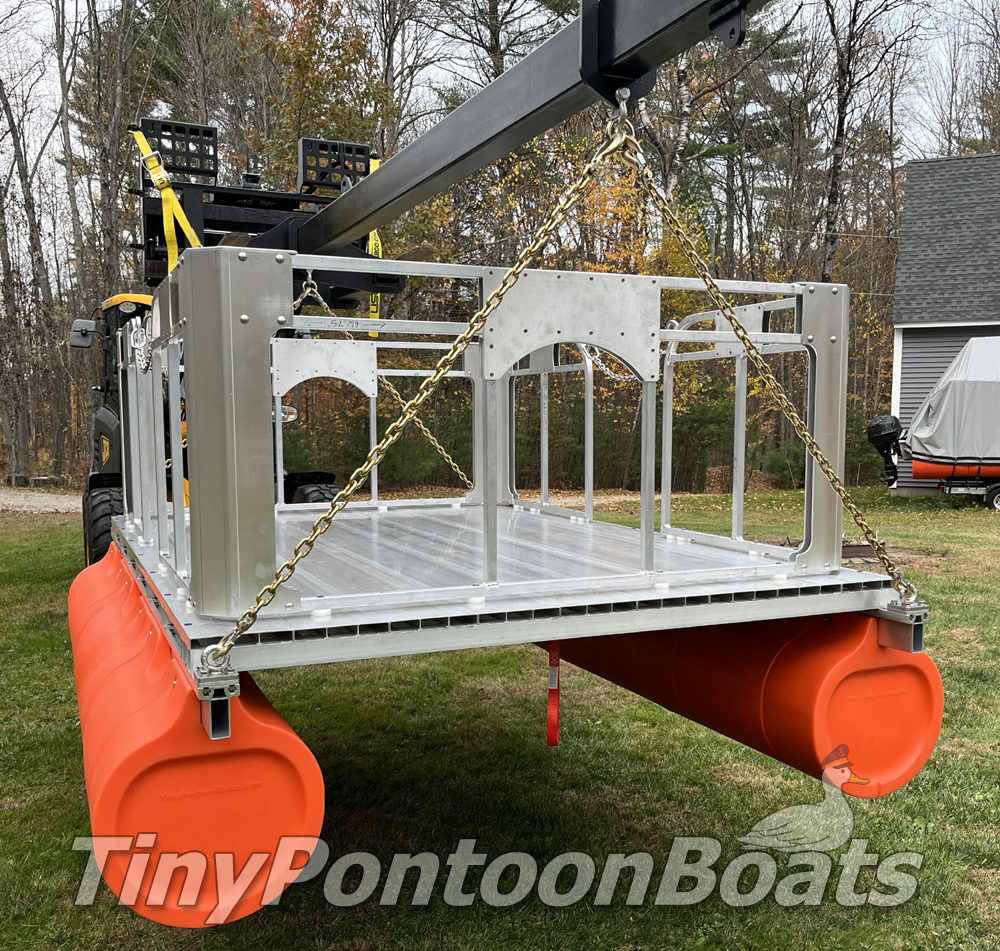

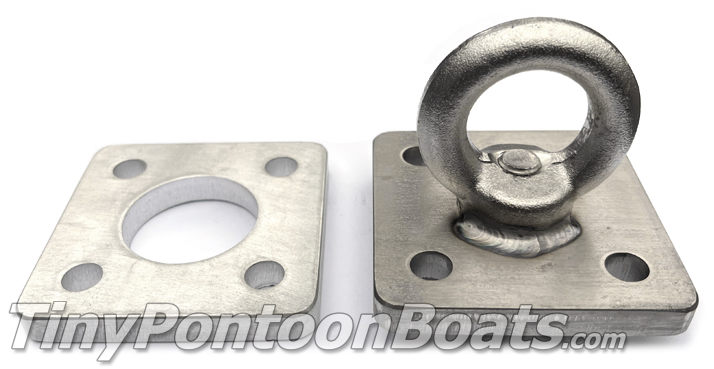

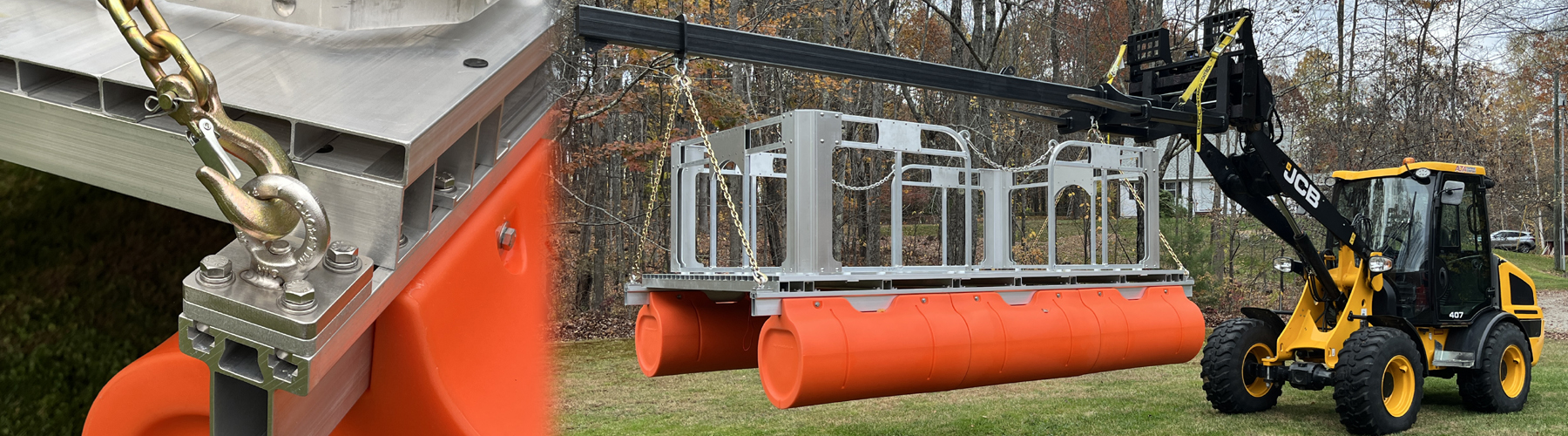

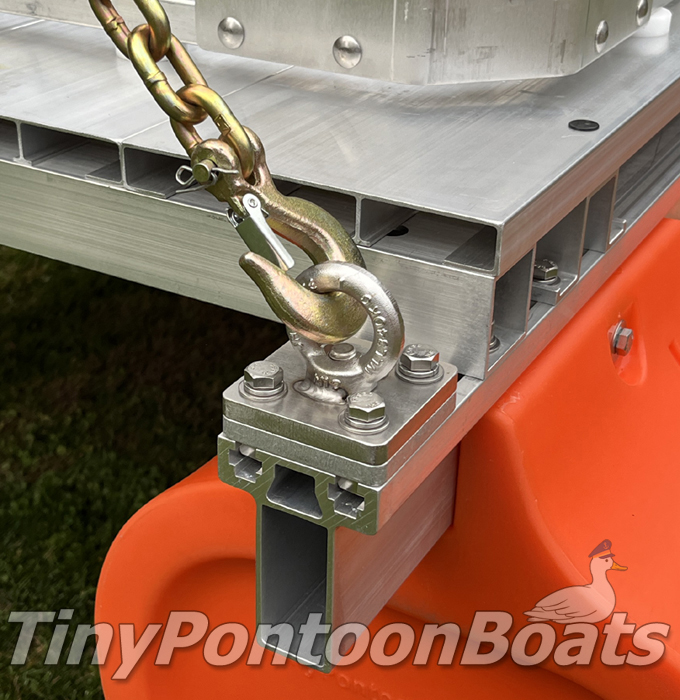

LIFTING BRACKETS
FOR BOATS WITH 18" FLOATS $425/SET OF FOUR
|
Our lift bracket sets for boats and work platforms with 18" wide floats are made to bolt to the vessel main beams. They're typically mounted outboard from the platform, especially with decking installed, but they are mounted in-board on the frame with our small "robotics platforms" that we do not offer decking kits for (4'x5' SN, 4'x7' DN, 8'x8' SN, 6'x10' DN tank boat models). When ordering a boat kit, we'll need to know if you intend to use our lifting points, as the main beams typically get extended 3" on either end of the vessel. The kit includes four ring plates made from 304 stainless steel (spacer plate is 6061 aluminum - allows for head of ring bolt) and the required stainless mounting hardware. The base plate is 3/8" thick and the lift ring has a 1 3/16" inside diameter. The ring is bolted to the plate, properly torqued (90 foot-pounds), and then the ring and the bolt are welded to the plate to ensure they never become loose. Each of the four included lift plates have a 725 pound rated vertical lift capacity.
|
|

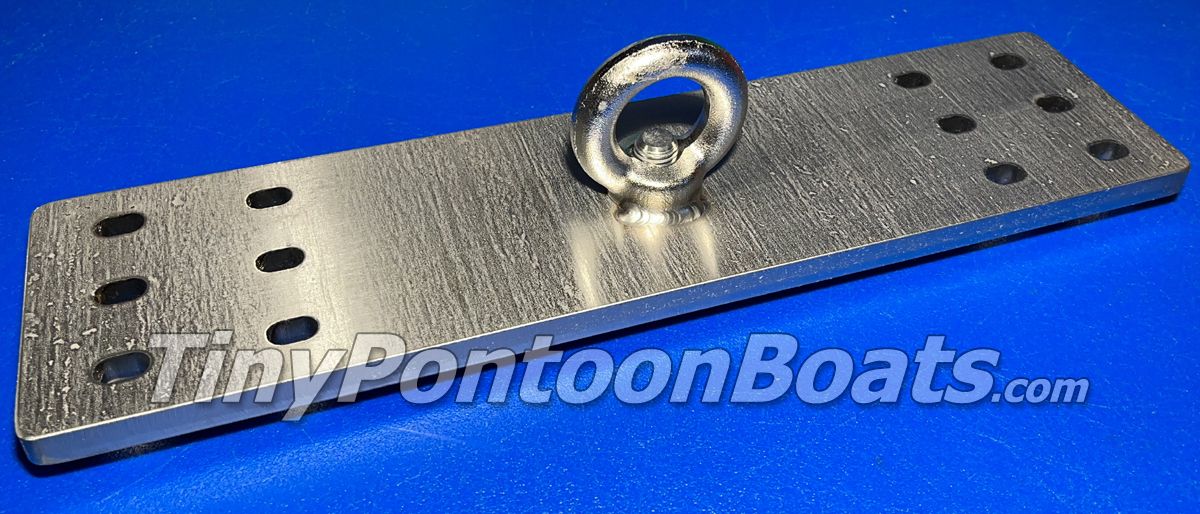

LIFTING BRACKETS
FOR BOATS WITH 27" FLOATS $965/SET OF FOUR
|
Our lift bracket sets for boats and work platforms with 27" wide floats are made to bolt to the vessel main beams. They're typically mounted outboard from the platform, especially with decking installed. When ordering a boat kit, we'll need to know if you intend to use our lifting points, as the main beams get extended by 4" on either end of the vessel. The kit includes four ring plates made from 304 stainless steel and the required stainless mounting hardware. The base plate is 1/2" thick and the lift ring has a 1 3/8" inside diameter. The ring is bolted to the plate, properly torqued (150 foot-pounds), and then the ring and the bolt are welded to the plate to ensure they never become loose. Each of the four included lift plates have a 1500 pound rated vertical lift capacity.
|
|

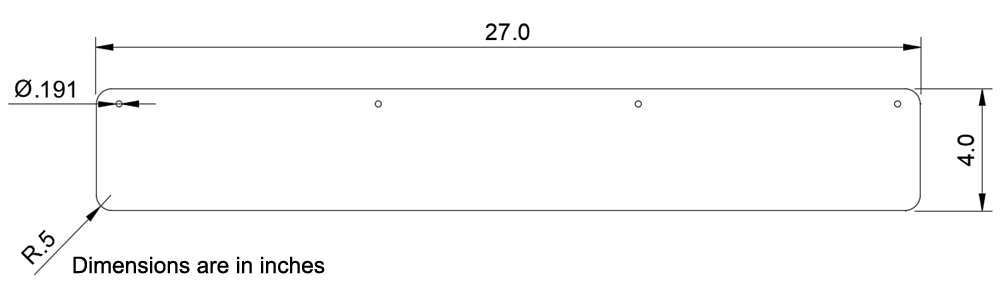

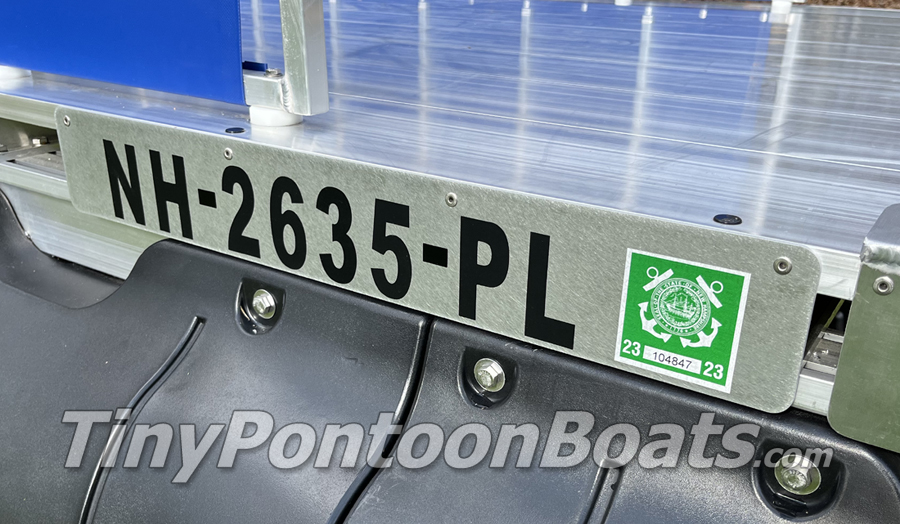

BOW NUMBER PLATE SETS
$125/PAIR
|
Our bow number plates provide convenient placement of state required bow number decals for powered boats and are designed to rivet to the side of our aluminum deck planks. These plates are 1/8" thick, 27" long, 4" tall, and come with 3/16" diameter stainless rivets. These plates are bare aluminum and are sold in pairs.
|
|

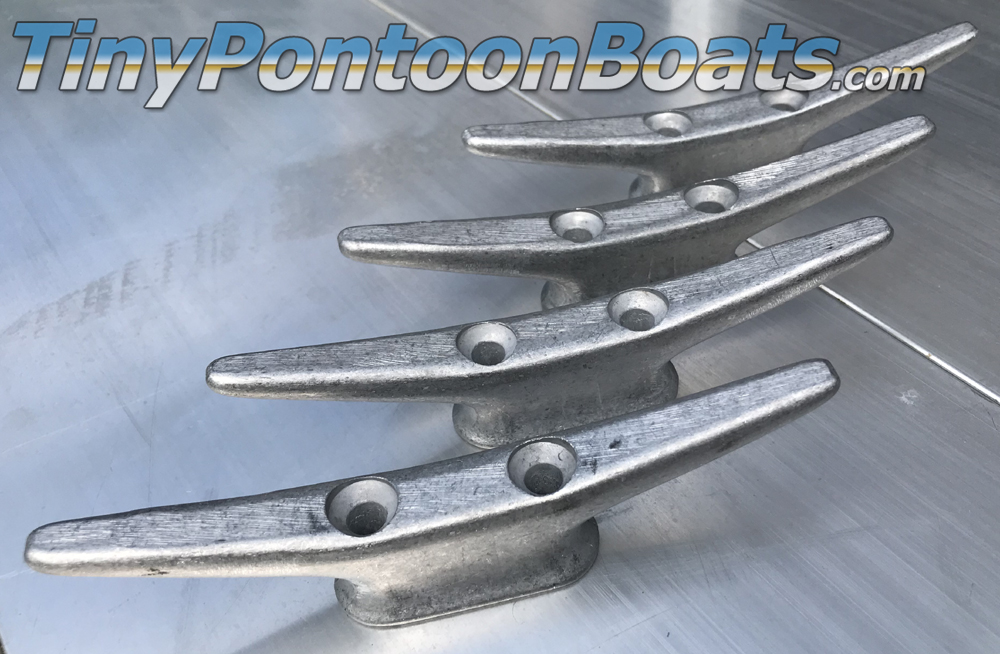

6" ROPE CLEAT SET
$77/SET OF FOUR WITH HARDWARE
|
These are the rope cleats we prefer to use on our boats. Each is 6" long, stands 1 3/8" tall, and has 1/4" screw holes. Made from light weight cast aluminum, they are strong enough for our small boats up to 15' in length. We sell these cleats in a set of four and they include stainless 2 3/4" long countersunk bolts and flange lock nuts.
When installing cleats, be sure to bolt through at least one crossmember per cleat. A 1/4" thick backing plate is required when not bolting to a crossmember. |
|

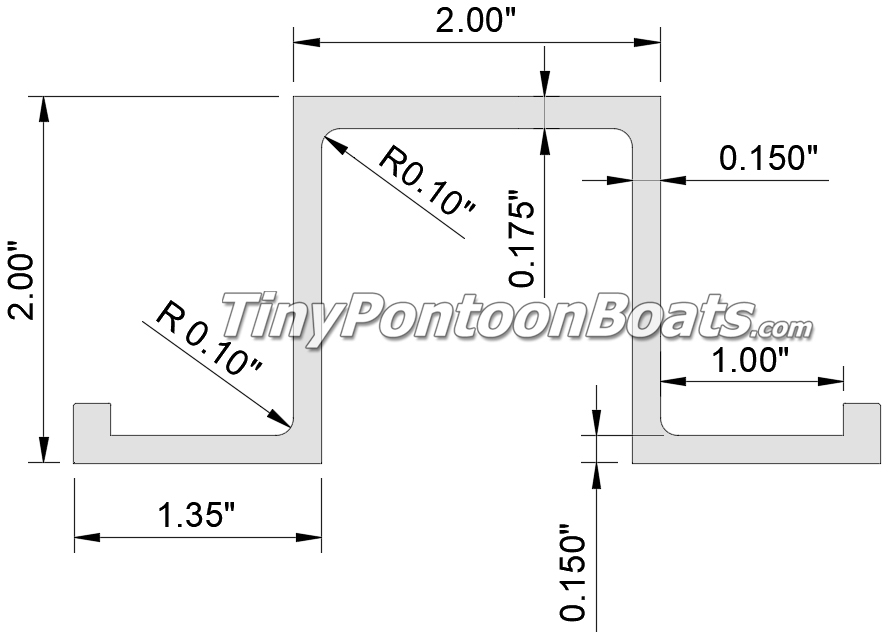

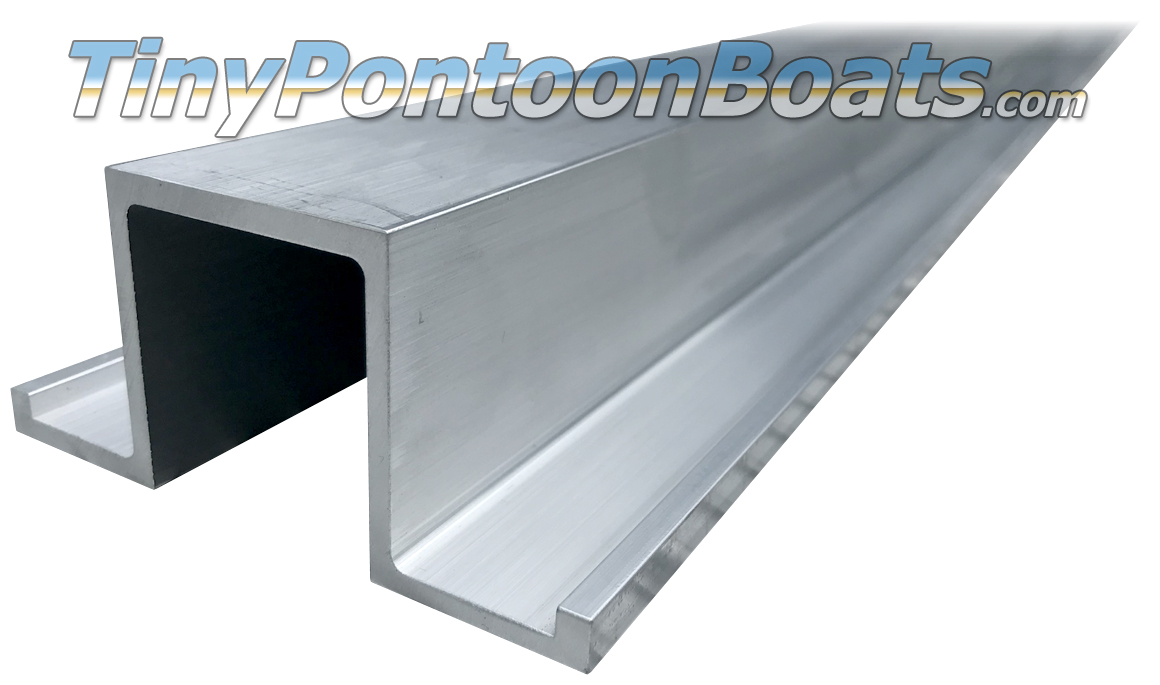

2" TALL HAT CHANNELS
$110 EACH This is the same 6000 series aluminum hat channel that our boats use. Each channel has wide flanges made for 3/8" bolts (requires SAE flat washers) and is the toughest 2" tall hat channel you'll find. Each channel weighs 12.6 pounds and is 95.75" long. We do not typically stock longer lengths of this material as the cost of shipping quadruples at 96". If you have an 8' wide boat, being 1/8" short on either side won't matter.
We can ship bundles of up to 6 pieces with FedEx Ground. If you need more than 6 lengths, select "6 lengths" and then the remaining number of lengths required. If you require more than 18 lengths of this material, please contact us and we'll compare alternate shipping options. If you need custom lengths of this material, please CALL US. Custom batches have 1000 pound minimums for any given length, but we typically have left-over pieces shorter than 4' available for cheap. |
|
|

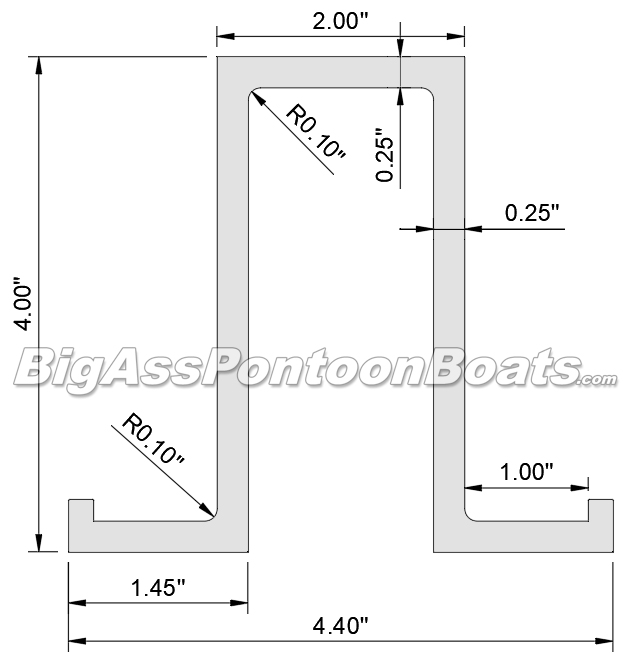

4" TALL HEAVY-DUTY HAT CHANNEL
Our Heavy-Duty hat channel is the same 4" tall, 1/4" thick, 6000 series aluminum pontoon barge frame crossmember that we use on our large pontoon barge systems. This is a STOUT part and weighs in at 3.66 pounds per linear foot. We can make this material in lengths up to 20' and we have minumum order requirements of 1000 pounds of any given length. The flanges on this material are designed to work with 3/8" bolts (requires SAE flat washers) or 7/16" bolts with special washers.
As of 5/24/25, an example 120" length of this material would be $234 each when purchased as a 1,000 pound batch (28 pieces). If purchasing in a 2,000 pound batch (54 pieces), each length is a little less at $228 per length. This pricing is for factory cut and roughly deburred pieces with no machine work. |
|
|

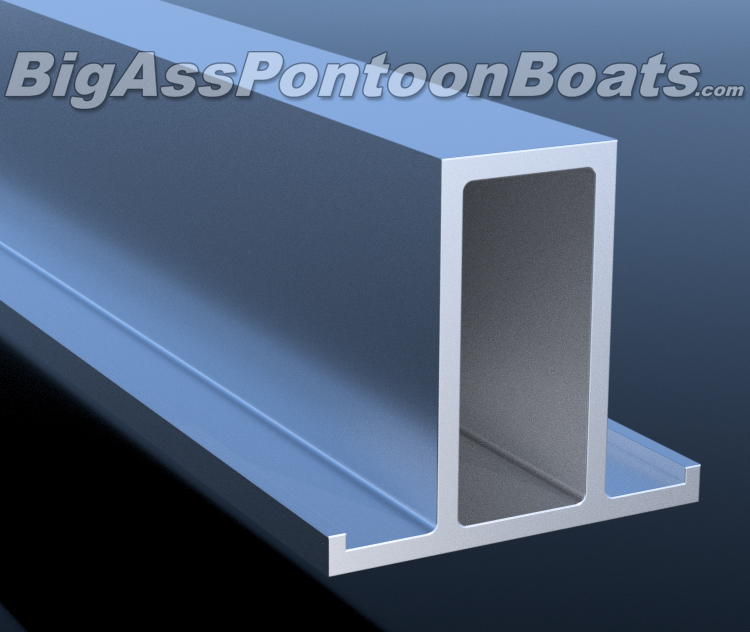

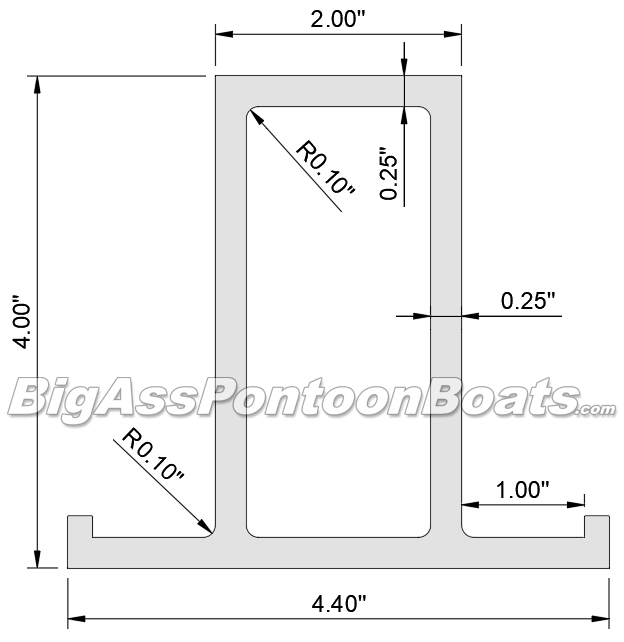

4" TALL FLANGE TUBE CROSSMEMBER
Our 4" tall flange tube crossmembers are the same overall side as the HD Hat Channel above, but with an extra connecting web at the base to make the part even stronger. Let's be real, this frame member is ridiculously strong and basically a 2"x4", 1/4" wall rectantular tube with flanges to bolt it down. If you need to make super stout platforms, these 6000 series alumiunm crossmembers are the way to go.
This extrusion profile weighs in at approximately 4.02 pounds per linear foot and we can make it in up to 20' lengths. We have minimum order requirements of 1000 pounds of any given length and the flanges on this material are designed to work with 3/8" bolts (requires SAE flat washers) or 7/16" bolts with special washers. As of 5/1/25, an example 120" length of this material would be $388 each when purchased as a 1,000 pound batch (25 pieces). If purchasing in a 2,000 pound batch (50 pieces), each length is a little less at $367 per length. This pricing is for factory cut and roughly deburred pieces with no machine work. |
|
|

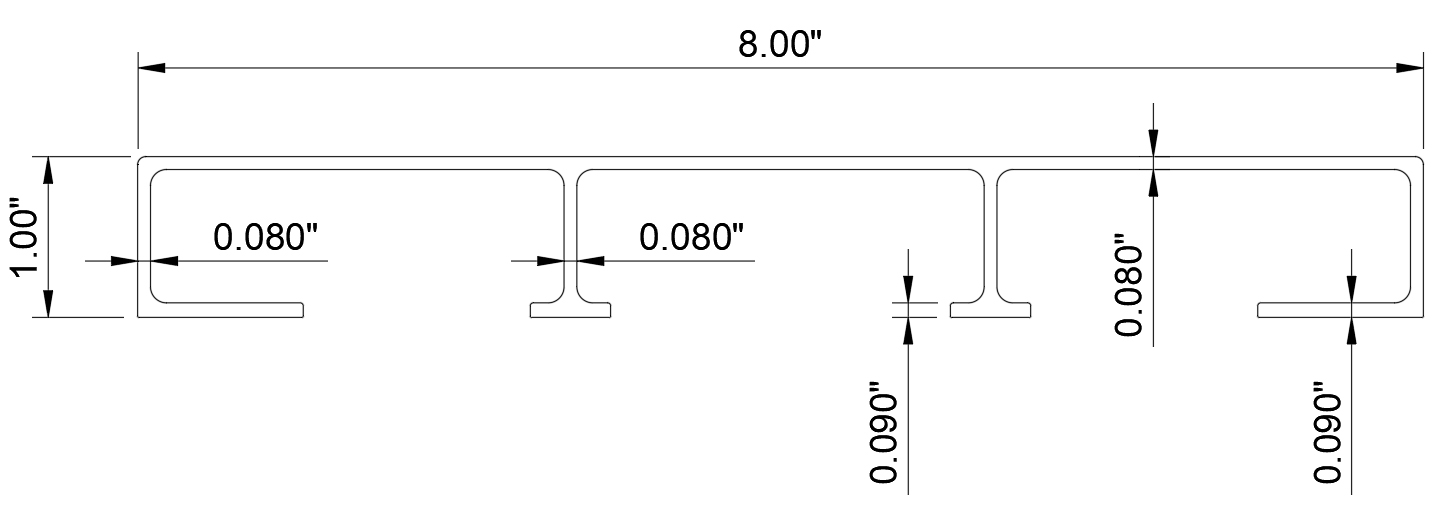

8"x1" ALUMINUM PONTOON
BOAT DECKING Our 8" wide, 1" tall aluminum deck planks are the same decking that we use on our pontoon boats and pontoon platforms. These planks are a 6000 series aluminum and weigh in at 1.44 pounds per linear foot, which is about 2/3 the weight of 3/4" marine grade plywood. This material is designed with 2 wide flanges on the base that allows you to fasten it to the frame of your boat with 3/16" diameter rivets, 1/4" bolts, or be easily welded on from under a platform (welding not recommend for boat applications).
We typically have limited stock of 165" lengths, but we can provide custom lengths up to 30' when ordering a minumum of 1000 pounds worth of any given length. Please be aware that custom orders may have to be picked up directly from the extrusion plant in Franklin, NH. As of 5/1/25, this material is roughly $9.80 per linear foot when ordering in 1000 pound batches. This pricing is for factory cuts without deburred ends. Please CALL us if you are interested in this material. |
|
|

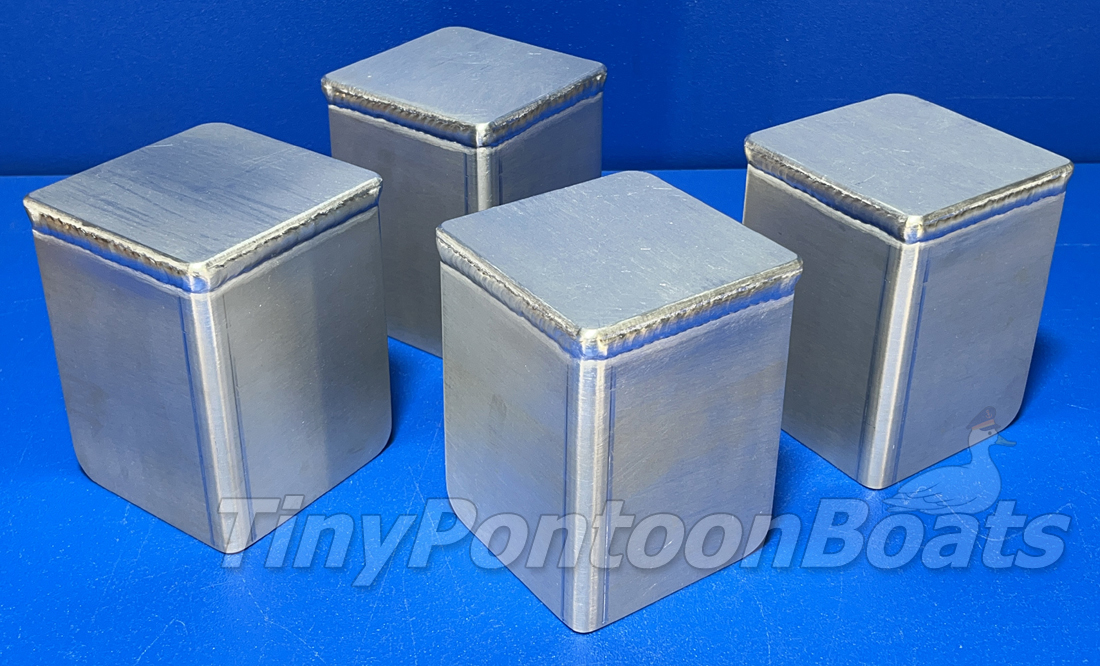

PONTOON DECK CORNER CAPS
$105-120 EACH FOR COMMON SIZES Tiny Pontoon Boats fabricates corner caps for all sorts of pontoon boats. Our caps are made with safety and a clean look in mind. The top plates are CNC laser cut from 1/4" thick aluminum plate with a 1/8" radius on the top edges to ensure they won't hurt toes. The bottom "skirt" of the cap is a formed single 1/8" plate with rounded corners for a clean look as well. The material we use for our caps is marine grade 5052 aluminum and our caps DO NOT come with mounting holes so you can drill your bolt or rivet holes where you need them.
Our caps provide 3.75" of coverage in either direction and we offer them in any height that you need (pricing shown for up to 5" tall). When selecting your cap height, please be aware that you're better off to have the cap extend below the bottom edge of your trim than to be too short. For further guidance on this, please view the diagrams on this page and CALL us when it's time to place the order. Pricing: 90° caps - $105 each
As these caps are custom made, we have a minumum order of 2 caps of any given shape or dimensions. This means that we WILL NOT MAKE YOU A SINGLE CAP. Due to lessons learned in the past with customers, PLEASE CALL to order caps from us. This ensures that you are ordering caps that fit as intended and that you are fully aware that RETURNS ARE NOT ACCEPTED for this custom-made product. Please be aware that turn-around time typically varies between 2-3 weeks as we fit these in between filling boat kit orders. That means that if you need these caps "by this weekend", that ain't happenin', so bear that in mind when placing your order. If you'd like to place an order for caps, PLEASE CALL US at 603-630-5658. |
|
|

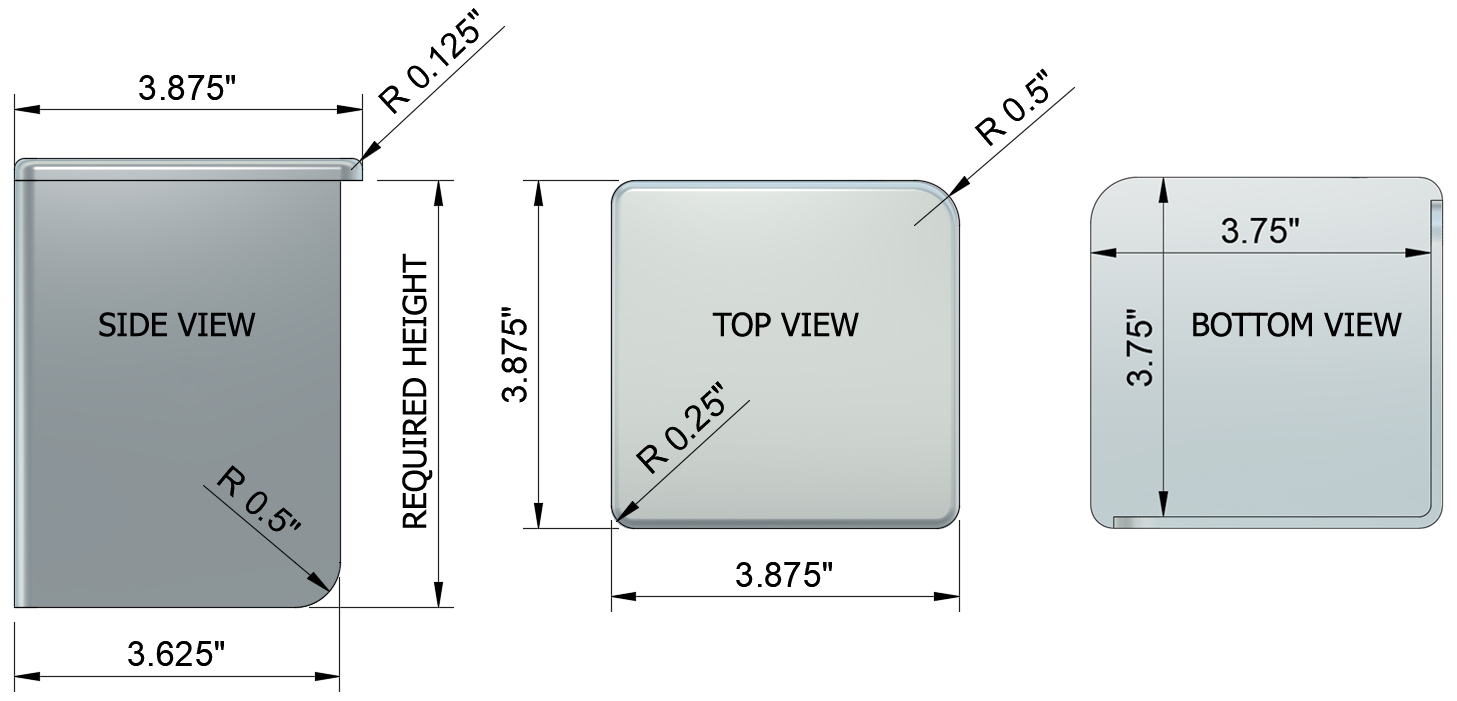

TYPICAL CAP CONFIGURATIONS 90° CAPS:
 91+° CAPS:
|
